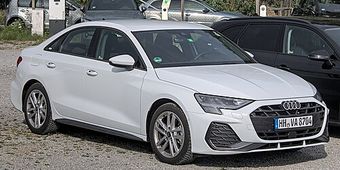

Audi A3 Sedan 4th (8Y) (2022–2025) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HU66

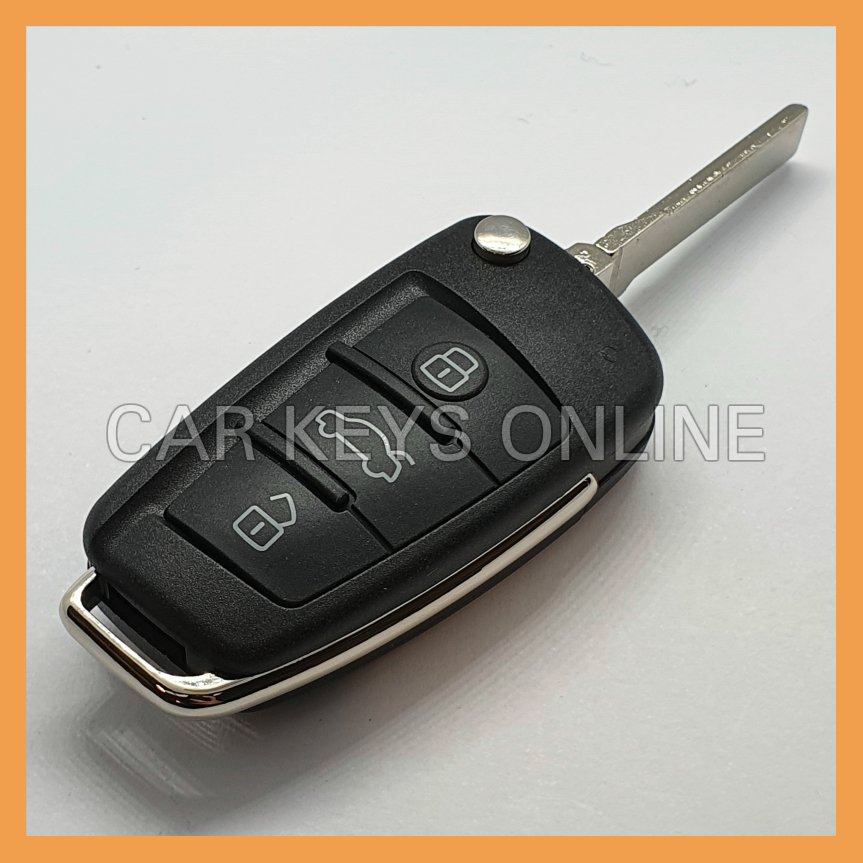

Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 434 MHz · NBGFS197 | 2022–2025 (all markets — US/CA, EU, AU, GCC) | NBGFS197 | 8Y0959754 | NXP HITAG Pro ID49 (VAG MQB49 / NCF295XW) | 434 MHz (433.46-434.36) + UWB 6.5-7.56 GHz | CR2032 | HU66 (emergency insert) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: See risks for PIN source.
- Online / server access: required — None.
- On-board (no tool) sequence: not available — Audi B9 / MLB Evo (A4/A5/A6/A7/A8/Q5/Q7/Q8 2017+) is newer MQB-derivative with stricter security. Add Key/AKL requires Audi ONLINE security access (factory scan tool flow). Xhorse VVDI Key Tool Plus + ACDP module pair or Autel IM608 II with Audi MLB Evo package may work for some 2017-2020 builds. Newest builds (2021+) often require dealer with Audi VIN-bound security ticket. Confirm coverage with tool vendor before quoting.
- On site: engine off.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis spans the MQB Evo era (2022-2025) where Audi layered SFD2 (Software-protected Function Diagnostic) on top of standard IMMO 5+ Security Access. Pre-2023 builds: IM608 II + XP400 Pro + APB112 typically completes OBD via cluster dump. 2023+ builds: SFD2 may force Audi ONLINE security ticket via dealer or 3rd-party portal — verify SFD2 status (read VIN + module list) before quoting.
- Battery support recommended for VAG MQB session (cluster data dump takes time).
- Audi B9 / MLB Evo (2017+): can require dealer-only ONLINE security ticket for newest builds. Verify Autel/Xhorse coverage for the exact VIN before scheduling.
- AKL erases all existing key registrations — bring minimum 2 new key blanks (XSMA1EN or compatible MQB-prepared blank).
Lockout
Door pick / decode: Lishi HU66 (CW).
23 verified sources · Last verified: 2026-08-09
