BMW 7 Series 5th (F01/F02) (2009–2015) — Key Programming Reference
Model years covered: 2009, 2010, 2011, 2012, 2013, 2014, 2015
- Difficulty
- hard
- Lishi / lockout
- HU100R
Key fobs & transponder keys (2 variants)
| Photo | Key | Years | Market | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|---|---|
 | 315 MHz · YGOHUF5662 | 2011-2015 NA (US/Canada/Mexico) | Americas | YGOHUF5662 | 9266845-02 | PCF7953P (NXP HITAG-Pro / ID49) | 314.6–315.0 MHz | CR2450 | HU100R |
 | 433 MHz · YGOHUF5767 | 2009–2015 export (EU, China, Japan, Australia, Russia, Egypt, GCC/Middle East) | Europe · Asia-Pacific · Other | YGOHUF5767 | 9312533-03 | PCF7953P (NXP HITAG-Pro / ID49) | 433.2 / 434.64 MHz | CR2450 | HU100R |

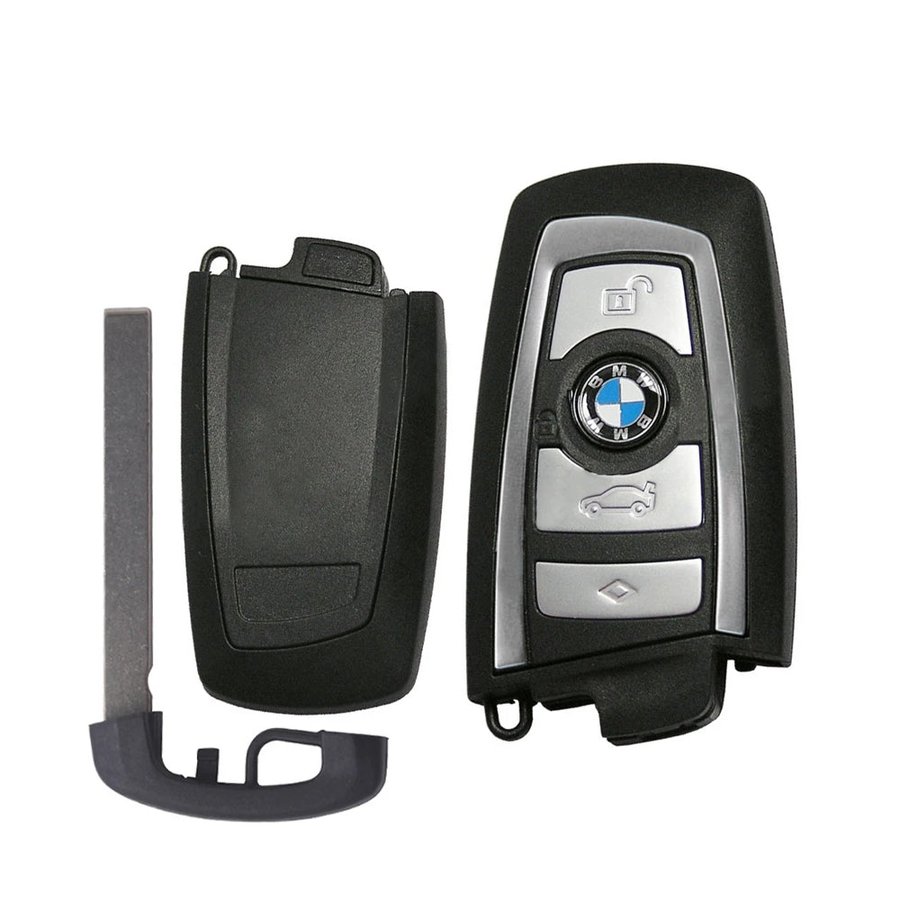

CAS4 smart proximity key — 315 MHz (Americas) · FCC ID YGOHUF5662 · P/N 9266845-02
Not to confuse with: F01/F02 (2009-2015) uses CAS4 with HU100R blade. E65/E66 7 Series (2002-2008) uses CAS1 with LX8766S and HU92 blade. G11/G12 7 Series (2016+) uses BDC2 with N5F-ID21A and HU100R blade.
30 sources · 23 direct · verified 2026-08-10
- fccid.io T1 · FCC filing / OEM catalog
- fccid.io T1 · FCC filing / OEM catalog
- fcc.report T1 · FCC filing / OEM catalog
- fccid.io T1 · FCC filing / OEM catalog
- fccid.io T1 · FCC filing / OEM catalog
CAS4 smart proximity key — 433 MHz (RoW / Europe / Asia-Pacific / Other) · FCC ID YGOHUF5767 · P/N 9312533-03
22 sources · 21 direct · verified 2026-08-06
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF + VVDI BMW + dealer.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — BMW 7 Series CAS4/CAS4+ requires a professional key programmer — no self-programming.
- On site: engine off · 100A+ battery support · Clear CAS/FEM DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis BMW 7 Series (2009-2015) uses BMW CAS4/CAS4+ — the F-chassis CAS era with an NXP PCF7953P HITAG-Pro ID49 key on an HU100R blade; the immobiliser is the CAS4 module, NOT a FEM/BDC, so there is no FEM EEPROM pre-processing on this car. Early builds are CAS4 (1L15Y) and builds from about mid-2012 are CAS4+ (5M48H); both are handled over OBD with a working key on current tools (a CAS4 unlock or CAS update may run first — back up before accepting). An all-keys-lost needs the engine ISN — read from the DME over OBD where the tool supports that DME, otherwise from the DME on the bench (Autel G-Box) — with a CAS4 in-circuit EEPROM read as the fallback when the OBD unlock fails.
- BMW smart proximity or remote head key: ensure existing key fob battery is functional before starting.
- Verify the immobiliser before booking — the tool read-out decides the route, not the model year: BMW EWS (E46, E53, E83 era bladed keys) → CAS1 (E65/E66 7 Series to 2004) → CAS2 (E65/E66 7 Series from 2004, early E60/E61 and E63/E64) → CAS3/CAS3+ (E-chassis from about 2006, late builds answering as encrypted CAS3++ / ISTA-P) → CAS4/CAS4+ (F01/F02, F07/F10/F11, F06/F12/F13, X3 F25, X4 F26) → FEM (F20/F21, F22/F23, F30/F31/F34, F32/F33/F36) or BDC (X5 F15, X6 F16, X1 F48, X2 F39, MINI F54/F55/F56/F57/F60) → BDC2 (G-chassis, G30/G31 built 11/2016-06/2020) → BDC3 (G-chassis built from about mid-2020). Confirm the CAS/FEM type and the transponder ID from a working key with the tool before quoting.
- Tool kit context: on CAS4/CAS4+ the add key runs over OBD with a working key — no FEM/BDC bench dump. Keep a CAS4 in-circuit reader (Yanhua ACDP, Xhorse VVDI Prog, XPROG3) for the case where the OBD unlock fails, and the Autel G-Box for a bench DME ISN read on an all-keys-lost — not for the CAS. Xhorse VVDI2 / Key Tool Plus and Autel IM608 are the dominant aftermarket on this platform. APB112 simulator NOT applicable. LKE Smart Key Emulator unused on BMW. XP400 PRO for IPC/ECM bench fallback.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for BMW 7 Series CAS4/CAS4+ — professional tool mandatory.
- BMW CAS4/CAS4+ AKL: the key is built from the CAS4 data (OBD unlock on current tools, or an in-circuit EEPROM read of the CAS4 module when the unlock fails) plus the engine ISN — read from the DME over OBD where the tool supports that DME (Bosch N55 DMEs are documented over OBD), otherwise from the DME on the bench (Autel G-Box). No FEM/BDC EEPROM dump on this chassis.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- AKL accessory needs: a DME ISN read path — OBD where the tool supports the DME, otherwise the Autel G-Box on the bench — and a CAS4 in-circuit reader (Yanhua ACDP / Xhorse VVDI Prog / XPROG3) for when the OBD unlock fails. No FEM/BDC dump and no BDC2 cloud token on this CAS4 car. APB112 simulator NOT applicable. LKE Smart Key Emulator unused on BMW. XP400 PRO for IPC bench fallback.
Lockout
Door pick / decode: Lishi HU100R (CCW).
52 verified sources · Last verified: 2026-08-10
Open full case in KeyAssist →Step-by-step tool menu paths, the full source list and video guides for this case are in the KeyAssist app — free to start, works offline.
Quick answers
- What FCC ID does the BMW 7 Series 2009–2015 key use?
- YGOHUF5662 — smart key; YGOHUF5767 — smart key.
- What transponder chip does the BMW 7 Series 2009–2015 key use?
- PCF7953P (NXP HITAG-Pro / ID49) — smart key.
- What key blade and Lishi tool fit the BMW 7 Series 2009–2015?
- Key blade: HU100R. Lishi: HU100R.
- What OEM part number does the BMW 7 Series 2009–2015 key use?
- 9266845-02 — smart key; 9312533-03 — smart key.
