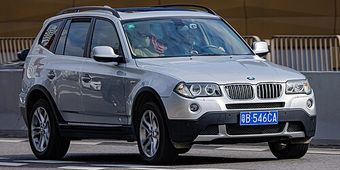

BMW X3 1st (E83) (2004–2010) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HU92

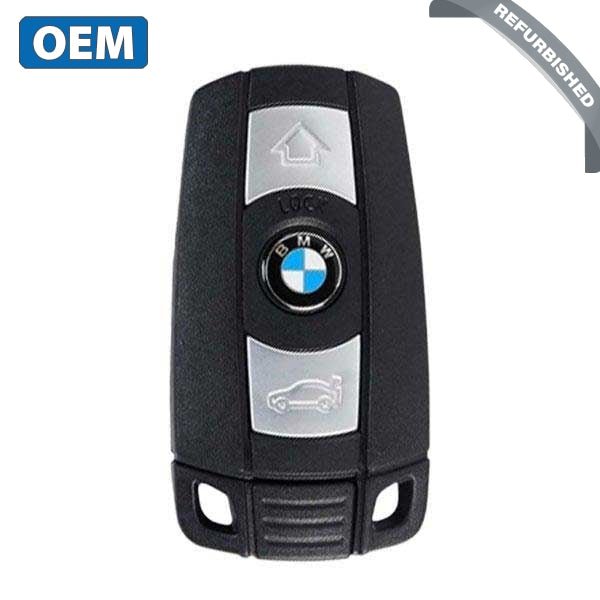

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · KR55WK49127 | 2007–2010 LCI (CAS2/CAS3 era; slot key inserted into dash ignition slot) | KR55WK49127 | 6986583 | PCF7945A (HITAG2 / ID46) | 315 MHz | VL2020 | HU92 |
| 315 MHz · LX8FZV | 2004–2007 pre-LCI (EWS/CAS2 era one-piece diamond remote-head key) | LX8FZV | 6955750 | PCF7935 (Philips Crypto / ID44) | 315 MHz | VL2020 | HU92 |
| 868 MHz · 5WK49145 | 2004–2010 (EU / Asia-Pacific / GCC / RoW; 868 MHz CAS slot/diamond key) | n/a | 5WK49145 | PCF7945A (HITAG2 / ID46) | 868 MHz | CR2032 | HU92 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF + VVDI BMW + dealer.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — BMW X3 BMW CAS3+ requires professional tool + bench EEPROM — no self-programming.
- On site: engine off · 100A+ battery support · Clear CAS/FEM DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis BMW X3 uses BMW CAS3 / CAS3+ (2004-2010) with PCF7945 HITAG-2. ISN OBD read success varies — Xhorse VVDI BMW Tool + CAS3 module is primary; Autel IM608 + IMKPA BMW + G-Box bench fallback for damaged ISN. AVDI BMW also supported.
- BMW smart proximity or remote head key: ensure existing key fob battery is functional before starting.
- Verify chip before booking (this chassis facelift): BMW EWS/CAS-2 (pre-2007) → CAS3/CAS3+ (2007-2013) → FEM/BDC (2014-2018 F-chassis) → BDC2 (2018+ G/U/I-chassis). Some 2007-2009 facelifts shipped with mid-cycle CAS swap; confirm transponder ID and ECU code from a working key with Xhorse VVDI BMW Tool reader before quoting.
- Tool kit context: Autel G-Box (G-Box3 specifically) is MANDATORY for FEM/BDC EEPROM bench dump — no OBD-only path. Xhorse VVDI BMW Tool + CAS3/FEM/BDC module is the dominant aftermarket. APB112 simulator, IMKPA Toyota module NOT applicable. LKE Smart Key Emulator unused on BMW. XP400 PRO for IPC/ECM bench fallback.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for BMW X3 BMW CAS3+ — professional tool mandatory.
- BMW CAS3+ AKL needs ISN extraction + bench EEPROM dump (Autel G-Box / VVDI Prog / XPROG3) on most chassis.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- AKL accessory needs: Autel G-Box bench EEPROM (G-Box3 for FEM/BDC) is CRITICAL on F/G chassis. Xhorse VVDI Prog for bench dump fallback. IMKPA + cloud token for newest BDC2. APB112 simulator NOT applicable. LKE Smart Key Emulator unused on BMW. XP400 PRO for IPC bench fallback.
Lockout
Door pick / decode: Lishi HU92 (CCW).
46 verified sources · Last verified: 2026-08-10
