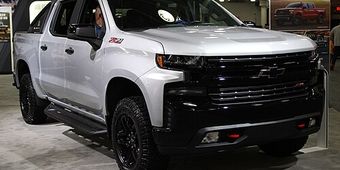

Chevrolet Silverado 4th (T1XX) (2019–2025) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- HU100
Key fobs & transponder keys (5 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

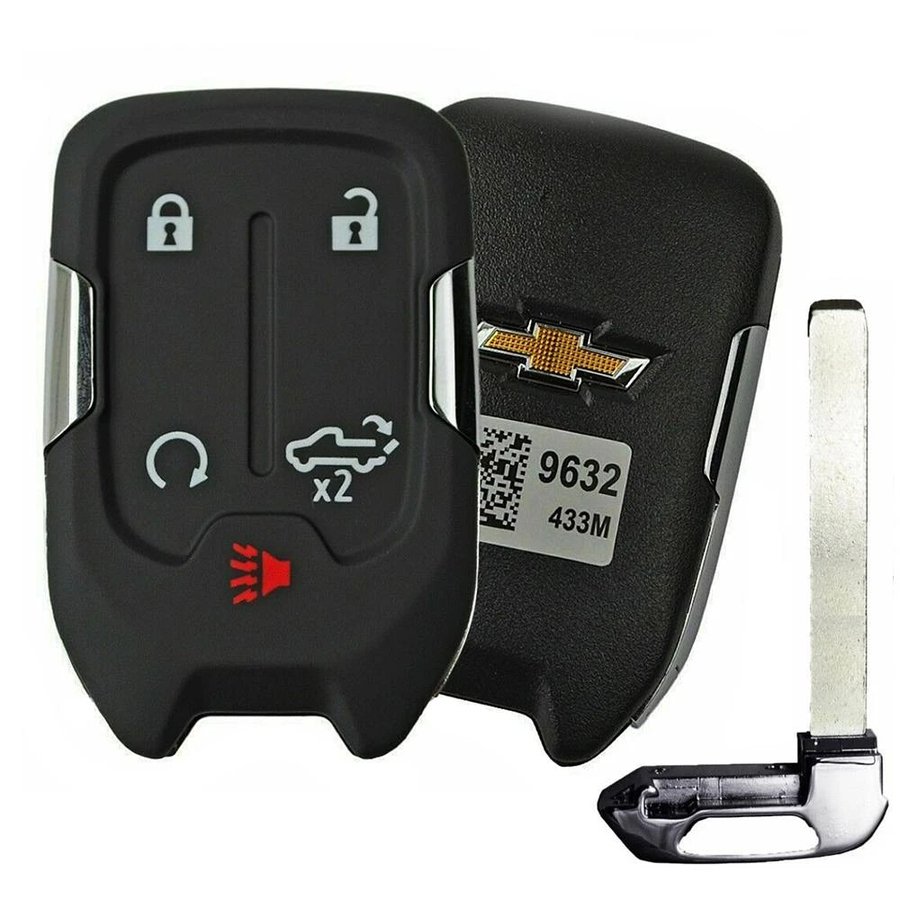

| 433.92 MHz · HYQ1EA | 2019–2020 NA (also GCC/Middle East + GMSV AU/NZ — same 433.92 MHz Global-B hardware) | HYQ1EA | 13529632 | NXP HITAG-2 / Philips ID46 (GM EXT) | 433.92 MHz | CR2032 | HU100 / B119 |
| 433.92 MHz · HYQ1ES | 2021–2025 NA (also GCC/Middle East + GMSV AU/NZ — same 433.92 MHz Global-B hardware) | HYQ1ES | 13522854 | NXP HITAG-2 / NCF2951E (ID46, GM Global-B AES) | 433.92 MHz | CR2032 | HU100 / B119 |
| 433.92 MHz · YGOG21TB2 | 2022–2025 NA running change (also GCC/Middle East + GMSV AU/NZ) | YGOG21TB2 | 13548437 | NXP HITAG-Pro ID49 (128-bit, GM Global-B) | 433.92 MHz | CR2450 | HU100 / B119 |
| 433.92 MHz · M3N-32337200 | 2019–2023 NA (turn-key ignition trims, e.g. WT/Custom) | M3N-32337200 | 84209237 | none | 433.92 MHz | CR2032 | n/a |
| transponder · B119-PT (ID46) | 2019–2023 NA (turn-key ignition trims; companion to M3N-32337200 fob) | n/a | 23209427 | NXP/Philips ID46 GM EXT (PCF7937E, HITAG-2 extended) | n/a | n/a | HU100 / B119-PT |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF VSP SAC + dealer.
- Online / server access: required — GM cloud token + NASTF VSP.
- On-board (no tool) sequence: not available — Chevrolet Silverado GM Global B requires professional OBD tool — no self-programming procedure.
- On site: engine off · Maintain 12V+ · Clear SECURITY/IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Chevrolet Silverado (2019-2025) uses GM Global B AES — newest GM security tier. AKL requires NASTF VSP SAC (24-digit Security Access Code, $150/yr membership + per-VIN fee via SDRM portal). Add-key may proceed without SAC on some 2020-2022 VINs. Autel IM608 + IMKPA GM cloud + NASTF VSP credential, Lonsdor K518 USA + GM Global B module (limited).
- GM smart proximity or remote head key: ensure existing key fob battery is functional before starting.
- Verify chip before booking (this chassis facelift): GM spans Passlock (pre-2008 econoline) → PK3/PK3+ (2000-2010 Cadillac/Chevy) → HITAG-2 (2010-2016) → HITAG-AES Global A (2017-2019) → Global B (2020+ NASTF VSP SAC required). Mid-cycle K2XX/T1XX facelifts swap chip — confirm transponder ID from a working key with Lonsdor K518 reader before quoting.
- Tool kit context: Autel IMKPA GM module is the dominant add-key accessory (~$5-15/session for Global B cloud). AD Smart Pro ADS178 also strong GM. Lonsdor LKE Smart Key Emulator for K518 simulated-key flow. Xhorse KH100 + GM module. APB112 simulator, G-Box bench EEPROM NOT typically needed. XP400 PRO only for BCM EEPROM bench fallback.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Chevrolet Silverado GM Global B — professional tool mandatory.
- AKL for GM Global B needs PIN (NASTF / BCM read / Tech 2 dealer) + Global B needs NASTF VSP SAC.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- AKL accessory needs: NASTF VSP SAC for Global B chassis (mandatory); Autel IMKPA + GM token, Lonsdor LKE Smart Key Emulator for K518 simulated-key AKL path, Xhorse KH100 GM. APB112 simulator NOT mandatory. G-Box bench EEPROM NOT used. XP400 PRO only if BCM EEPROM corrupted (rare).
Lockout
Door pick / decode: Lishi HU100 (CW).
