Ford Expedition 2nd (U222) (2003–2006) — Key Programming Reference
Model years covered: 2003, 2004, 2005, 2006
- Difficulty
- easy
- Lishi / lockout
- FO38
Key fobs & transponder keys (2 variants)
| Photo | Key | Years | Market | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|---|---|
 | 315 MHz · CWTWB1U331 | 2003-2006 (U222 all model years) | Americas · Other | CWTWB1U331 | 8S4Z-15K601-AA | none | 315 MHz | CR2032 | none |
 | transponder · H84/H92 · 4D63 | 2003-2006 (U222 all model years) | Americas · Other | n/a | 164-R8040 | Texas 4D63 (40-bit) | n/a | n/a | H75 (H84-PT / H92-PT; Ilco 1196FD, JMA FO-15D, Silca FO40R) |

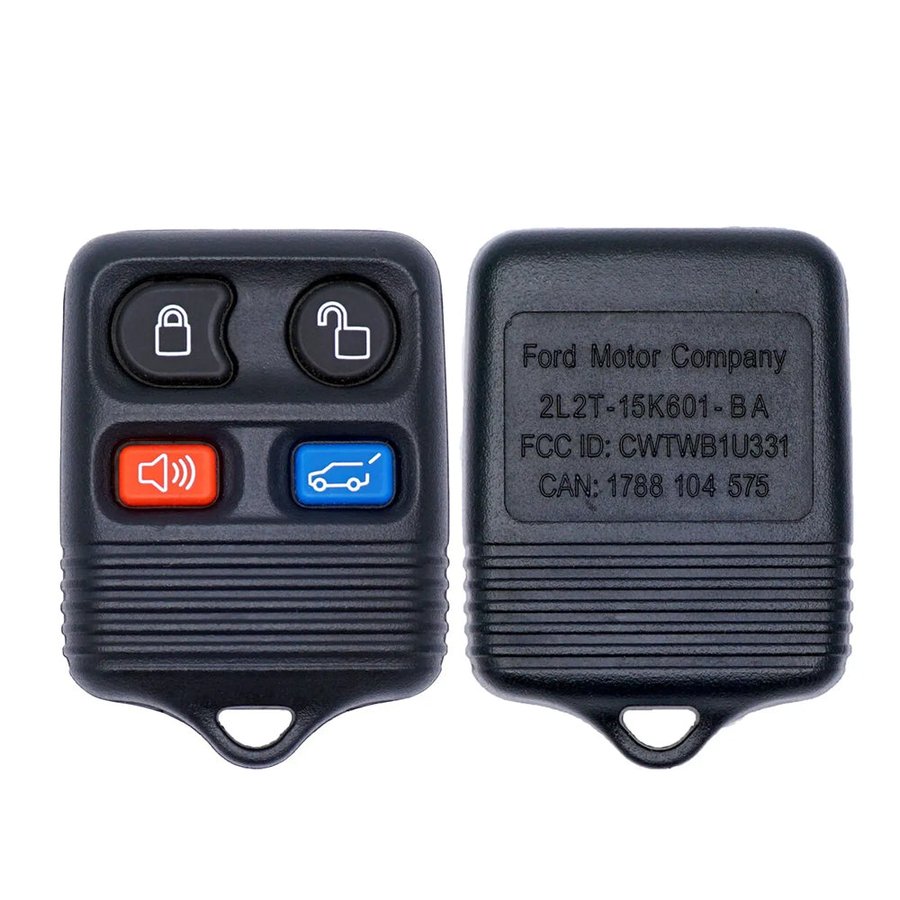

Keyless-entry remote fob (separate, 3/4-button, 315 MHz) · FCC ID CWTWB1U331 · P/N 8S4Z-15K601-AA
Not to confuse with: U324 Expedition (2007-2017) transitioned to CWTWB1U793. Some 2007 models may still use OUCD6000022 depending on build date.
22 sources · 22 direct · verified 2026-08-05
Bladed PATS transponder ignition key (H84 / H92, 4D63 40-bit, no RF) · P/N 164-R8040
5 sources · verified 2026-08-10
- uhs-hardware.com T3 · Retail listing
- clksupplies.com T3 · Retail listing
- clksupplies.com T3 · Retail listing
- bestkeysupply.com T3 · Retail listing
- americankeysupply.com T3 · Retail listing
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF + autokeyprog + FORScan.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Ford Expedition PATS 4D63 PATS 3-4 requires professional OBD tool — no self-programming procedure.
- On site: engine off · Maintain 12V+ · Clear PATS DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus (add key) · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Ford Expedition uses Texas Crypto 4D63 80-bit PATS 3-4 (2003-2006). Covered by Autel IM608 Pro II, AD Smart Pro ADS178 Ford, Lonsdor K518 USA + Ford adapter, Xhorse + KH100, OBDSTAR Ford menu. PATS PIN via FORScan with license OR autokeyprog.com PATS calculator OR NASTF locksmith database.
- Key fob/blade: ensure existing battery (if applicable) is functional before starting.
- Verify chip before booking (this chassis facelift): Ford PATS spans 4C (40-bit, pre-2003 typical), 4D63 (80-bit, 2003-2014 typical), 4D60 transitional. Some 2002-2004 chassis (Mustang, F-150, Crown Vic) shipped with mid-cycle chip swap — confirm transponder ID from a working key with FORScan or Lonsdor K518 reader before quoting.
- AD Smart Pro ADS178 also strong on Ford. Lonsdor LKE Smart Key Emulator for K518 simulated-key flow. Xhorse KH100 + Ford module confirmed. APB112 simulator NOT typically needed. G-Box bench EEPROM NOT used. XP400 PRO only for PCM bench fallback.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Ford Expedition PATS 4D63 PATS 3-4 — professional tool mandatory.
- PATS 4D63 PATS 3-4 AKL needs PATS PIN (FORScan license / autokeyprog.com / NASTF) — confirm AKL path before quoting.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- AKL accessory needs: Lonsdor LKE Smart Key Emulator for K518 simulated-key AKL path, Xhorse KH100 Ford. APB112 NOT mandatory. G-Box bench EEPROM NOT used. XP400 PRO only if PCM EEPROM corrupted (rare).
Lockout
Door pick / decode: Lishi FO38 (CCW).
27 verified sources · Last verified: 2026-08-10
