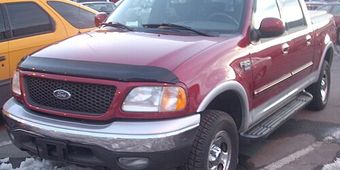

Ford F-150 10th (PN96) (1997–2003) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- FO38

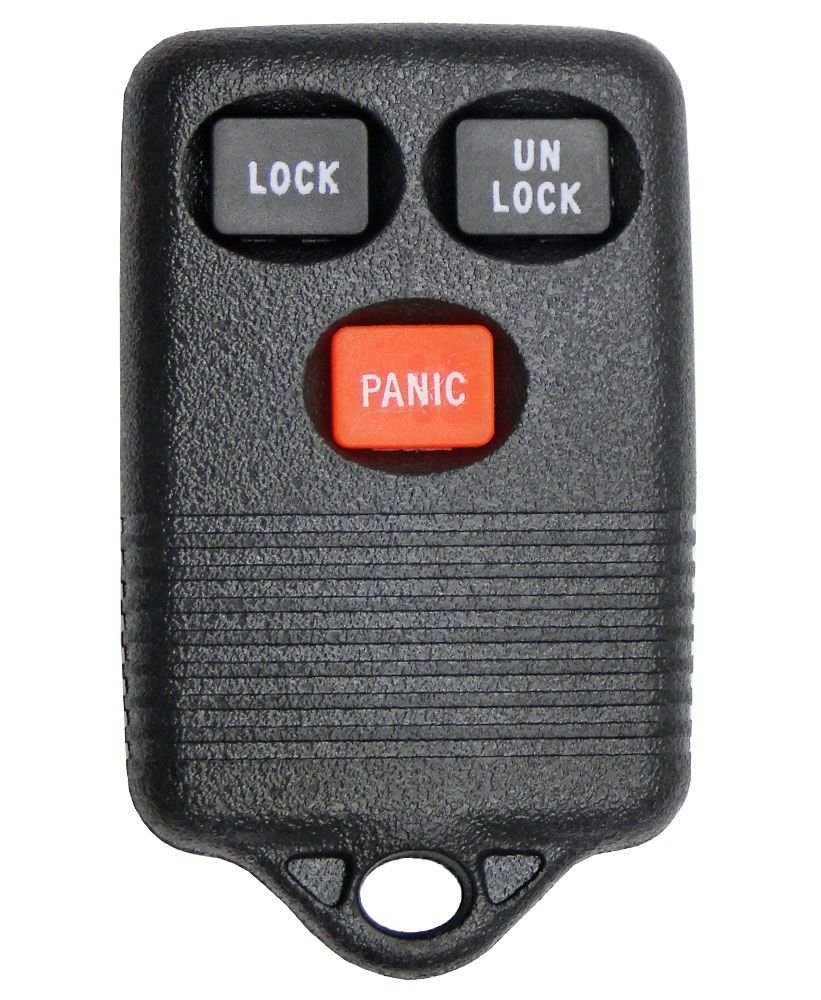

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · GQ43VT4T | 1997 (early production, pre-PATS) | GQ43VT4T | F7AZ-15K601-AB | none | 315 MHz | CR2016 | H75 |
| 315 MHz · GQ43VT11T | 1998–2003 NA (PATS transponder key from 1999) | GQ43VT11T | F87B-15K601-AB | Texas Crypto 4C (40-bit) PATS1 (companion ignition key) | 315 MHz | CR2032 | H72 |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN — mechanical only.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear PATS DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Ford F-150 (1997-2003) ships with NO PATS immobilizer — mechanical ignition only. The blade alone starts the vehicle. No chip programming required.
- Key fob/blade: ensure existing battery (if applicable) is functional before starting.
- Tool kit context: Lonsdor K518 USA + Ford adapter can reprogram remote-function radio on this chassis via Ford → Remote-only menu. Autel IM608 Pro II + IMKPA Ford also supported. APB112 simulator, G-Box bench, XP400 PRO, LKE Smart Key Emulator NOT applicable for no-PATS chassis (mechanical ignition only).
- Ford F-150 no-PATS chassis — mechanical AKL by re-keying lock cylinders only.
- No tool-based AKL needed; locksmith re-cuts blades for new lock set.
Lockout
Door pick / decode: Lishi FO38 (CCW).
64 verified sources · Last verified: 2026-08-10
