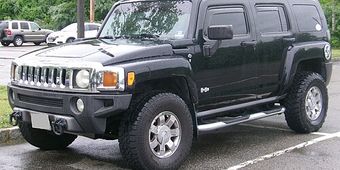

Hummer H3 1st generation (2006–2010) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- B102
Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

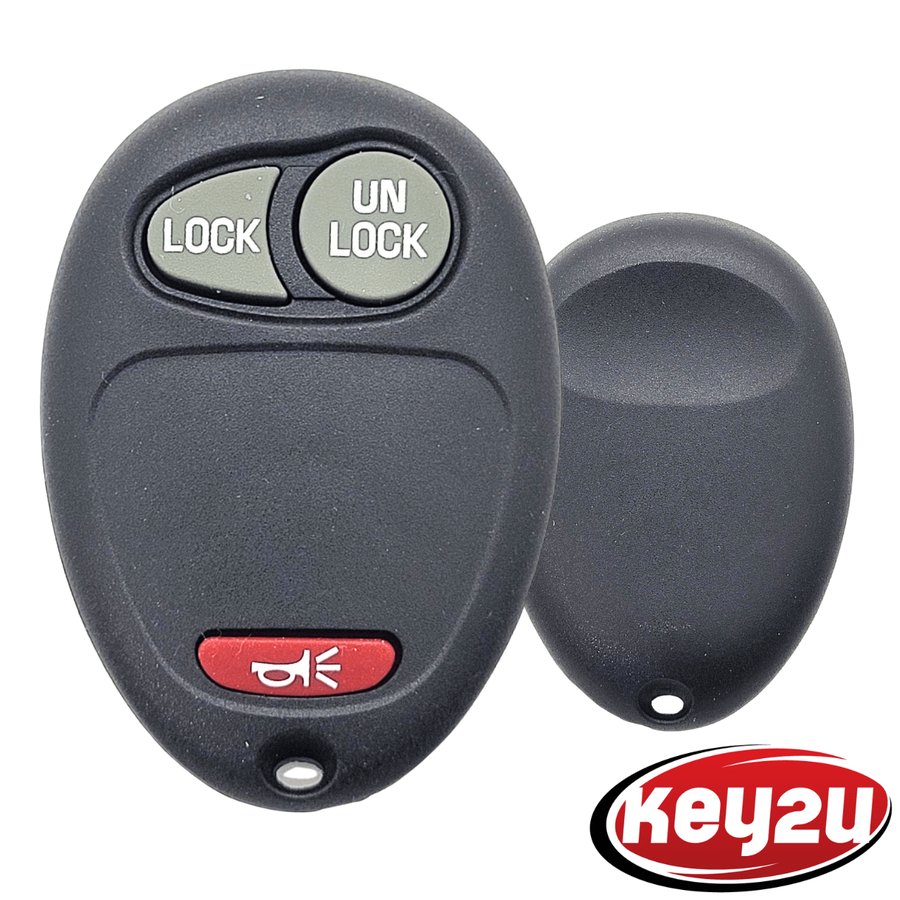

| 315 MHz · L2C0007T | 2006–2010 (incl. H3T crew cab 2009–2010) | L2C0007T | 10335583 | none | 315 MHz | CR2032 | n/a |
| mechanical - B110 blank | 2006–2010 (US-spec PassLock) | n/a | 89025647 | none | n/a | n/a | B110 (Ilco P1114 / B110-P, Strattec 692366, JMA GM-38) |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN - Passlock relearn.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hummer H3, 2006-2010) spans the GM Passlock era — uses resistor pellet (not transponder chip). H3 uses GMT355 mid-size SUV platform shared with Chevy Colorado / GMC Canyon. Smaller than H2. Hummer brand discontinued 2010 — H3 was final model year.
- AKL via on-board cycle works — Passlock has no "all keys lost" lockout. No special tool needed if 30+ min available.
Lockout
Door pick / decode: Lishi B102 (CW).
26 verified sources · Last verified: 2026-08-06
