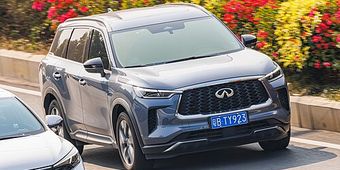

Infiniti QX60 3rd generation (2026–2026) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- NSN14

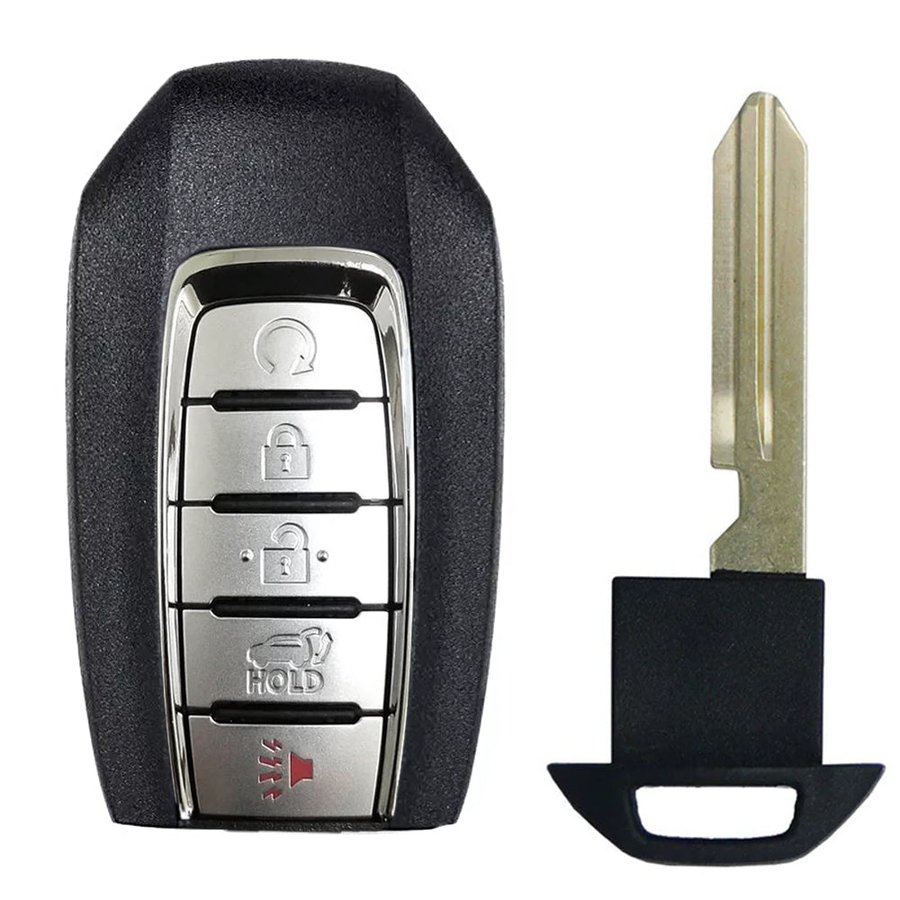

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 433.92 MHz · KR5TXN4 | 2026 MY — unchanged carryover of the 2022–2025 L51 hardware (suppliers list this exact FCC/PN pair as 2022–2025 QX60; nothing changed for 2026) | KR5TXN4 | 285E3-6SA7B | HITAG-AES (4A / NXP NCF29A1M) | 433.92 MHz | CR2032 | NSN14 / DA34 |
| 433.92 MHz · KR5TXN1 | 2026 (carryover of 2022–2025 L51) | KR5TXN1 | 285E3-6SA3A | HITAG-AES (4A / NXP NCF29A1M) | 433.92 MHz | CR2032 | NSN14 (emergency insert) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: NASTF VSP / Nissan dealer.
- Online / server access: required — None.
- On-board (no tool) sequence: not available — Infiniti NATS HITAG-AES (ID4A) requires professional OBD IMMO tool. No ignition-cycle self-programming exists.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Infiniti QX60 R53, 2026 launch year) spans the new Nissan/Renault e-POWER Pathfinder R53 platform with HITAG-AES 88 IMMO. Nissan NATS Key Registration ALWAYS erases all registered Intelligent Key IDs — applies even when adding a single key. Locksmith MUST collect all existing keys before procedure; programming a new key wipes the old. Autel IM608 II + APB112 + 40-pin BCM cable is the established path for HITAG-AES Nissan platforms.
- HITAG-AES (ID4A) transponder requires tool with updated HITAG-AES firmware. Verify IM608 / K518 Pro compatibility before booking.
- Very recent model (2022+): limited field documentation. Ensure tool firmware is the latest release before booking.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- Keep ALL existing/lost key fobs at least 10 metres from vehicle during AKL programming.
- HITAG-AES (ID4A) AKL requires tool with HITAG-AES algorithm support — confirm firmware.
Lockout
Door pick / decode: Lishi NSN14 (CW).
23 verified sources · Last verified: 2026-08-10
