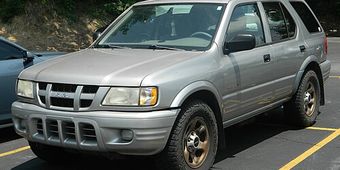

Isuzu Rodeo 2nd generation (1998–2004) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HON58R

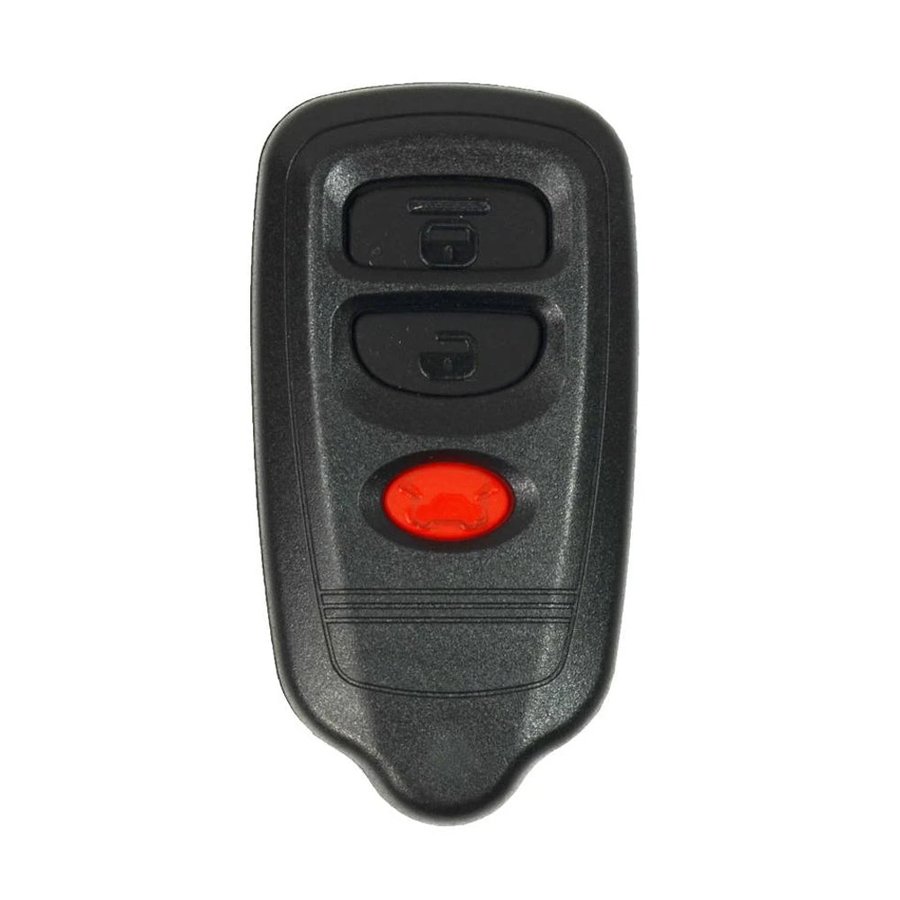

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · HYQ1512R | 1998-2002 | HYQ1512R | 8-97149-392-0 | none | 315 MHz | CR2016 | X250 (B101) |
| 315 MHz · HYQ1512V | 2003-2004 | HYQ1512V | 8-97318-854-0 | Megamos 48 (ID48) | 315 MHz band (FCC grant tested at 314 MHz) | CR1616 | HON58R (HD106) |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: See risks for PIN source.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · n/a · n/a.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- 1998-2002: no IMMO — plain X250/B101 blade mechanical key cut only. No transponder programming needed.
- 2003-2004: Megamos ID48 IMMO present (HON58R blade, HYQ1512V remote head key). No OBD tool with confirmed support found for this chassis — EEPROM bench approach required, no OBD path confirmed.
- Verify customer's model year before ordering: X250/B101 blade (1998-2002) vs HON58R/HD106 blade (2003-2004) are different cuts.
- 1998-2002: no IMMO — plain X250/B101 mechanical key cut only. No AKL programming needed.
- 2003-2004: Megamos ID48 IMMO present. AKL requires EEPROM bench access to the IMMO module — no OBD AKL path confirmed for this rare chassis.
- Verify year before ordering: X250/B101 (1998-2002) vs HON58R/HD106 (2003-2004).
Lockout
Door pick / decode: Lishi HON58R (CW).
30 verified sources · Last verified: 2026-08-06
Open full case in KeyAssist →Step-by-step tool menu paths, verified source links and video guides for this case are in the KeyAssist app — free to start, works offline.
