Jaguar X-Type 1st (X400) (2001–2009) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- FO21

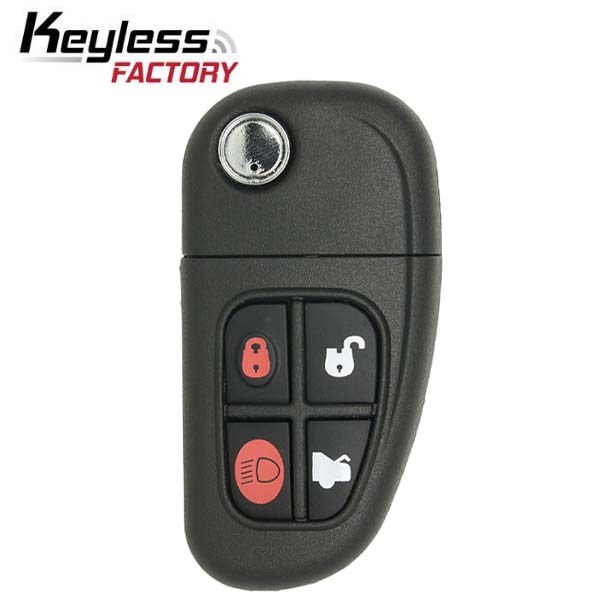

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · NHVWB1U241 | 2002–2008 NA (saloon + Sportwagon) | NHVWB1U241 | 1X43-15K601-AB | Texas 4D60 (glass) | 315 MHz | CR2032 | FO21 (Tibbe 6-cut) |
| 433 MHz · C2C35284 | 2001–2009 EU/RoW (saloon + Estate) | n/a | C2C35284 | Texas 4D60 (ID60, glass) | 433.92 MHz | CR2032 | FO21 (Tibbe 6-cut) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF + Lonsdor JLR + dealer.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Jaguar X-Type X400 JLR 4D60 pre-2008 requires professional OBD tool — no self-programming.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Jaguar X-Type X400 (2001-2009) uses Texas 4D60 / ID73 — older JLR fixed-code chip. Covered by Autel IM608 + IMKPA JLR, Lonsdor K518 USA + JLR adapter, AD Smart Pro ADS178 (Jaguar pre-2008 strong). Bench EEPROM via VVDI Prog / XPROG3 fallback.
- JLR smart proximity or remote head key: ensure existing key fob battery is functional before starting.
- Verify chip before booking (this chassis facelift): JLR ID49 HITAG-PRO (2014+) replaced PCF7941 HITAG-2 (2008-2014) which replaced Texas 4D60 (pre-2008). Some 2013-2015 Range Rover and Evoque chassis shipped with mid-cycle chip swap — confirm transponder ID from a working key with Lonsdor K518 reader before quoting.
- Tool kit context: Lonsdor JLR USA module is a SEPARATELY purchased SKU (~$200) — essential for K518 JLR coverage. Autel IMKPA JLR module + cloud token (~$5-15/session). Xhorse KH100 + JLR module also confirmed. APB112 simulator, G-Box bench EEPROM, LKE Smart Key Emulator NOT typically required. XP400 PRO for BCM bench fallback only.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Jaguar X-Type X400 JLR 4D60 pre-2008 — professional tool mandatory.
- AKL for JLR 4D60 pre-2008 typically needs NASTF + Lonsdor JLR USA module ($200 SKU) + dealer-bound on newest L460/L461.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- AKL accessory needs: Lonsdor JLR USA module ($200 SKU) is mandatory for K518 JLR path; Autel IMKPA + JLR cloud token; Xhorse KH100 JLR. APB112 NOT mandatory. G-Box bench EEPROM NOT used. XP400 PRO only if BCM/IMMO EEPROM corrupted (rare).
Lockout
Door pick / decode: Lishi FO21 (CW).
32 verified sources · Last verified: 2026-08-10
