Kia Forte 2nd (YD) (2014–2018) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY15

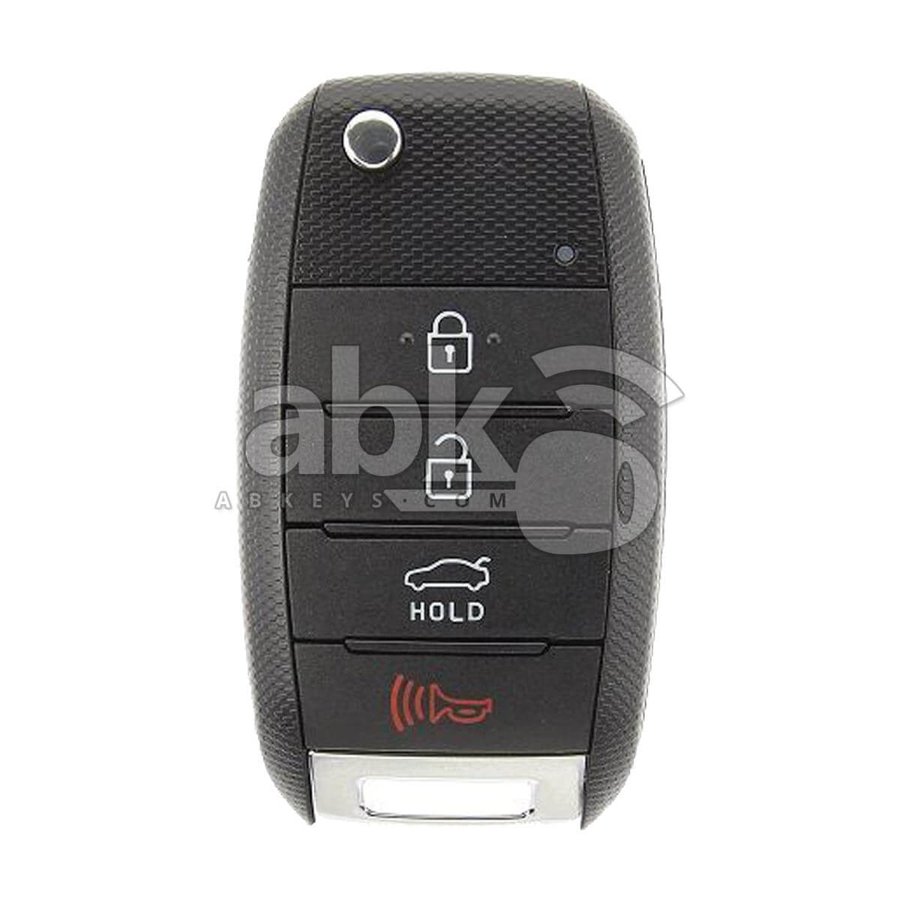

Key fobs & transponder keys (5 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · OSLOKA-870T | 2014-2016 NA — YD generation base through facelift | OSLOKA-870T | 95430-A7400 | none | 315 MHz (FCC test 313.85 MHz) | CR2032 | HY15 (Silca KIA7) |
| 433 MHz · OSLOKA-875T | 2017-2018 NA — YD facelift | OSLOKA-875T | 95430-A7200 | none | 433.92 MHz | CR2032 | HY15 (Silca KIA7) |
| 315 MHz · CQOFN00040 | 2014-2016 NA — YD EX / SX push-to-start trims | CQOFN00040 | 95440-A7500 | Texas DST-AES ID8A (128-bit) | 315 MHz (FCC test 314.35 MHz) | CR2032 | HY15 |
| 433 MHz · CQOFN00100 | 2017-2018 NA — YD facelift EX / SX push-to-start trims | CQOFN00100 | 95440-A7600 | Texas DST-AES ID8A (128-bit) | 433.92 MHz | CR2032 | HY15 / HYN14R |
| 433 MHz · FG00050 (non-US code) | 2013-2016 export — K3 / Cerato YD smart trims | n/a | 95440-A7100 | Texas DST-AES ID8A (128-bit) | 433.92 MHz | CR2032 | HY15 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: See risks for PIN source.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+.
- Bring: Photo ID + vehicle registration. VIN for code-cut if no working key available.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Kia Forte YD, 2014-2018 NA) spans TWO remote flip-key FCC bands: 2014-2016 (early YD) uses OSLOKA-870T at 315 MHz with PN 95430-A7400; 2017-2018 (facelift) uses OSLOKA-875T at 433 MHz with PN 95430-A7200. Both use the same HY15 blade. Verify trim + year before ordering — 315 MHz and 433 MHz fobs are NOT interchangeable.
- NA Forte YD flip-key remote portion is non-transponder per case data (chip=none). However, some IMMO-equipped trims/years may have a SEPARATE transponder chip embedded in the HY15 blade — verify per VIN before quoting. Smart-key proximity variant also exists for EX/SX trims (95440-A7500 / CQOFN00040 for 2014-2016; 95440-A7600 / CQOFN00100 for 2017-2018) — covered in separate cases, NOT this YAML.
- Verify chip before — the YD generation transitioned to Kia 4D60 (Texas, some trims) or remained chip=none on base. Adding a HY15 blank without a chip works fine for the keyless-entry remote portion but if the vehicle has an immobilizer the ignition path requires the chip. Locksmiths should test new blank with engine-cranking BEFORE delivery.
- AKL on this chassis: mechanical HY15 blade cut requires lock decoding (pick / impression / VIN-derived bitting). Remote AKL erases all existing remotes — bring minimum 2 new remotes matching trim year band (OSLOKA-870T for 2014-2016 OR OSLOKA-875T for 2017-2018).
- Verify trim before quoting AKL: 2014-2016 (315 MHz) and 2017-2018 (433 MHz) are NOT interchangeable. Smart-key proximity variant (separate FCCs CQOFN00040 / CQOFN00100) is a different case entirely — not this YAML.
- For IMMO-equipped Forte YD trims (separate transponder in blade): aftermarket OBD tool required for AKL. All major tools (Autel, Lonsdor, OBDSTAR, AutoProPad, AD Smart Pro, Xhorse, Launch) support full IMMO + remote AKL via Hyundai-Kia module.
Lockout
Door pick / decode: Lishi HY15 (CW).
90 verified sources · Last verified: 2026-08-09
Open full case in KeyAssist →Step-by-step tool menu paths, verified source links and video guides for this case are in the KeyAssist app — free to start, works offline.
