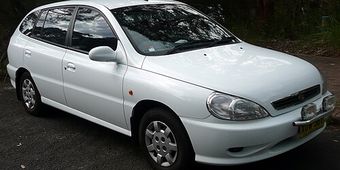

Kia Rio 1st / 2nd (2001–2011) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY16
Key fobs & transponder keys (4 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

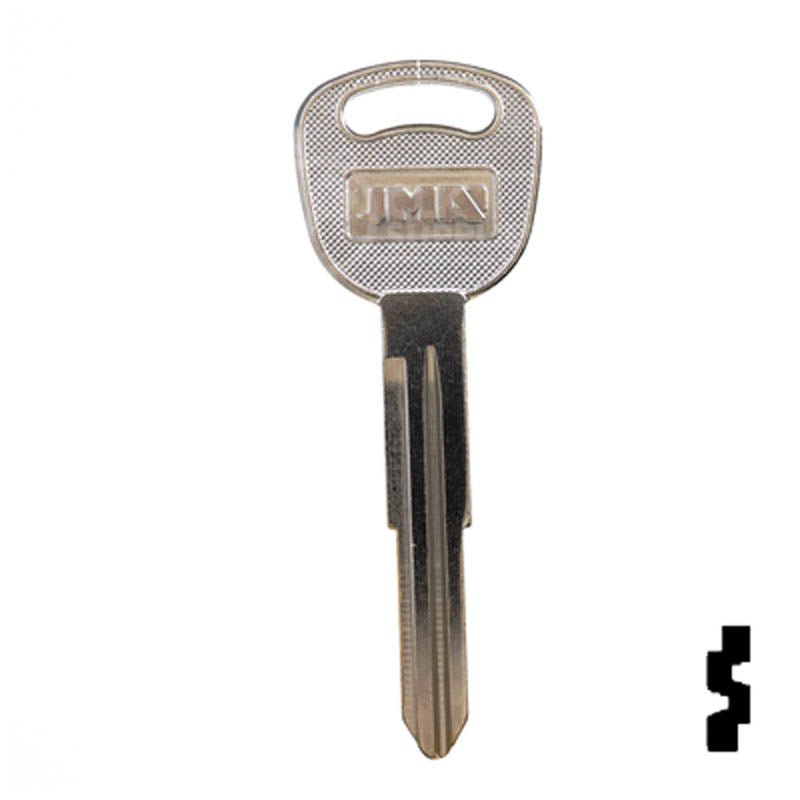

| mechanical · KK3/X253 no-FCC | 2001–2005 NA / 2000–2005 global — 1st gen (DC platform) | n/a | 0K2A1-76201A | none | n/a | n/a | KK3 (Ilco X253, JMA KI-3D, Silca KIA3R, Lishi KIA3R) |
| 315 MHz · PLNHM-T002 | 2007–2010 NA — 2nd gen JB (Rio and Rio5) with optional keyless entry | PLNHM-T002 | 95430-1G000 | none | 315 MHz | CR2032 | n/a |
| 315 MHz · PINHA-T036 | 2009–2011 NA (post-PINHA-T036 grant 2009-01-21) | PINHA-T036 | 95430-1U000 | none | 315 MHz | CR2032 | HY16-P |
| 433 MHz · 95430-1G750 (EU/RoW) | 2007–2011 — 2nd gen JB Europe / RoW (433 MHz market) | n/a | 95430-1G750 | none | 433 MHz | CR2032 | HY16-P (KIA3R profile) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: See risks for PIN source.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · n/a.
- Bring: Photo ID + vehicle registration. VIN for code-cut if no working key.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis spans TWO generations with different key configurations: 1st gen DC (2001-2005, vi=0) — pure MECHANICAL key only (KK3 blade), no remote, no transponder, no electronics. 2nd gen JB (2006-2011, vi=1/2) — MECHANICAL ignition key (HY16-P blade) + separate REMOTE FOB for keyless entry (PLNHM-T002 OR PINHA-T036 depending on production year). NO transponder on either generation NA-spec. Verify trim before quoting — DC and JB use DIFFERENT blade profiles (KK3 vs HY16-P).
- Production-mid-cycle FCC change on 2nd gen JB: 2006-mid-2009 = PLNHM-T002; mid-2009-2011 = PINHA-T036. Both are 315 MHz 3-button (Lock/Unlock/Panic — no trunk button on hatch). Verify chip before — visually inspect existing remote for FCC label printed on back.
- NO transponder IMMO on this variant (either generation). Mechanical ignition key requires only the bitting code — no electronics programming. 2010-2011 Canada-spec Rio JB had a separate transponder ignition key (HY20-PT / ID46) — NOT covered by this case (separate variant).
- AKL on this chassis depends on generation: DC (2001-2005) = pure mechanical AKL (pick / impression / decode the wafer cylinder); JB (2006-2011) = mechanical AKL + electronic remote-AKL via aftermarket OBD tool.
- Bring minimum 2 mechanical blanks per generation: DC = KK3 (Ilco X253 or equivalent); JB = HY16-P. For JB remote AKL: minimum 2 new remotes (PLNHM-T002 for 2006-2009 OR PINHA-T036 for 2010-2011). Verify trim before quoting AKL — DC and JB AKL have completely different tool requirements.
- NO transponder on this variant either generation = no risk of bricking electronics. NO NASTF VSP required (pre-2020 PIN-free era for this chassis). Mechanical-cylinder failure modes only.
Lockout
Door pick / decode: Lishi HY16 (CW).
50 verified sources · Last verified: 2026-08-10
