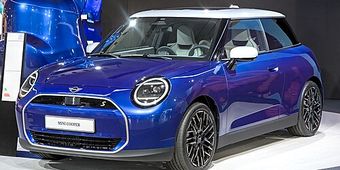

Mini Cooper 4th (J01/J05) (2024–2025) — Key Programming Reference
- Difficulty
- expert
- Lishi / lockout
- HU58
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 433 MHz · IYZBK1 | 2024–2025 — all markets (J01 electric Cooper, F66 petrol Cooper, J05 Aceman) | IYZBK1 | n/a | NXP ID49 HITAG-Pro (PCF7953V) | 433 MHz (433.2–434.64 MHz) + UWB 6.5–8.0 GHz | CR2032 | HU100R |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: BMW CAS / FEM PIN (dealer).
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (MINI Cooper J01/J05, 2024-2025) is the new Spotlight Auto JV platform — Chinese-built, NOT BMW FEM/BDC. Newer BMW EU EE control module with Megamos AES IMMO. Autel IM608 II + G-Box and Xhorse VVDI BMW + ACDP module cover earlier BMW CAS4/FEM/BDC F-series, but J01/J05 EU EE has narrow aftermarket support as of 2026. Verify tool firmware J01/J05 coverage before quoting.
- AKL on most 2014+ FEM modules requires bench EEPROM read — quote labor for FEM removal (under steering column / behind glove box).
- Mini Cooper J01/J05 (2024+) is newest Mini — chip data not yet finalized. confirm with reader.
- AKL erases all existing keys — bring minimum 2 new PCF7953P-compatible blanks.
Lockout
Door pick / decode: Lishi HU58 (CW).
13 verified sources · Last verified: 2026-08-05
