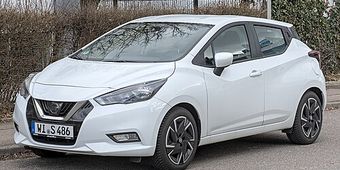

Nissan Micra 5th (K14) (2020–2022) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- NSN14

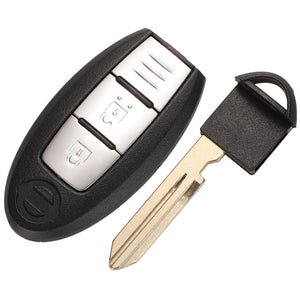

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 433.92 MHz · 285E3-5RF0A | 2017–2022 (K14, 12/2016+) keyless-go trims | KR5TXN1 | 285E3-5RF0A | HITAG-AES (NCF29A1M / 4A) | 433.92 MHz | CR2025 | NSN14 |
| 433 MHz · H0561-5FA0D | 2017–2022 (K14, 12/2016+) non-keyless trims | n/a | H0561-5FA0D | HITAG-AES | 433 MHz | CR2032 | NSN14 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Renault dealer / Abrites.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Nissan NATS ID46 transponder requires Nissan CONSULT-III or compatible aftermarket IMMO tool. No ignition-cycle self-programming exists.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Nissan Micra K14, 2020-2022) spans the Renault Clio platform — uses Renault PCF7952 ID46 Hitag2 IMMO, NOT Nissan NATS-AES. Autel IM608 II + Lonsdor K518 + Abrites cover Renault Clio Add Key/AKL. Use Renault menu (NOT Nissan menu) — Nissan menu will fail because IMMO architecture is Renault-derived.
- Existing working key must be present at the ignition for add-key on most tools.
- Smart proximity key: ensure existing key fob battery is functional before starting add-key procedure.
- Micra k14 chip type not confirmed in database — verify with existing key before programming. May be PCF7953P or HITAG-AES depending on trim.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- Keep ALL existing/lost key fobs at least 10 metres from vehicle during AKL programming.
Lockout
Door pick / decode: Lishi NSN14 (CW).
6 verified sources · Last verified: 2026-08-06
