Nissan Pathfinder 3rd (R51) (2005–2012) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- NSN14

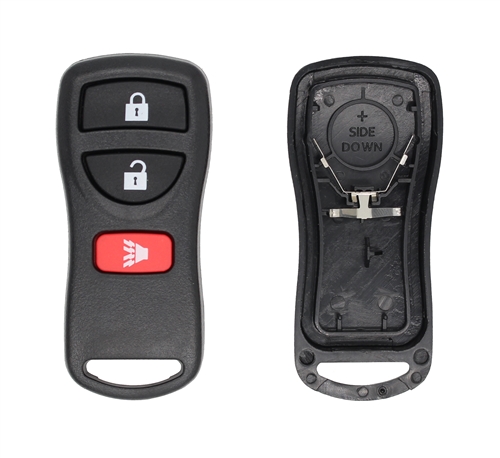

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · CWTWB1U415 | 2005–2012 NA (USA/Canada/Mexico) + GCC/Middle East US-export | CWTWB1U415 / CWTWB1U733 / CWTWB1U821 | 28268-1HJ1A | none | 315 MHz | CR2025 | n/a |
| 315 MHz · CWTWBU729 | 2010–2012 NA top trims (LE / Platinum I-Key push-start) | CWTWBU729 | 285E3-EM30D | NXP PCF7952 (ID46 / Hitag-2, smart) | 315 MHz | CR2025 | NSN14 (emergency insert) |
| 433 MHz · 28268-AX61A | 2005-2012 Europe + Australia/NZ + South America + Asia/Oceania | n/a | 28268-AX61A | Philips PCF7946 (ID46 / Hitag-2) | 433.92 MHz | CR2016 | NSN14 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: NATS PIN tool-side via OBD.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Nissan Pathfinder NATS-5/6 requires professional OBD tool — no self-programming procedure for ID46 transponder.
- On site: engine off · Maintain 12V+ · Clear NATS DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Nissan Pathfinder uses Texas PCF7936 (ID46) with NATS-5 / NATS-6 immobilizer (2005-2012). NATS-5/6 covered natively by Lonsdor K518 USA, Autel IM608 Pro II + IMKPA Nissan module, Xhorse VVDI Key Tool Plus Nissan module, OBDSTAR X300 DP Plus Nissan menu. PIN read tool-side via OBD — NASTF lookup not required for NATS-5/6 era.
- Standard 16-pin DLC OBD path; no XP400 PRO bench, no APB112 simulator needed for add-key.
- Smart proximity or remote head key: ensure existing key fob battery is functional before starting.
- Verify chassis NATS generation before booking: NATS-5 (1999-2009 typical) and NATS-6 (2010+ typical) differ in tool flow — confirm transponder ID from a working key with Lonsdor K518 reader before quoting. Some 2010+ Nissans transitioned to HITAG-AES in mid-cycle — verify chip before ordering blanks for facelift years.
- Tool kit context: Autel IMKPA Nissan module is the dominant add-key accessory ($5-10/session). Lonsdor K518 USA + Nissan adapter and Xhorse VVDI Key Tool Plus + Nissan KH100 module also confirmed. APB112 simulator, G-Box bench EEPROM, XP400 PRO, LKE Smart Key Emulator NOT required for OBD-only NATS add-key.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Nissan Pathfinder NATS-5/6 — professional tool mandatory (Lonsdor K518 / Autel / Xhorse / OBDSTAR).
- NATS-5/6 AKL via OBD — PIN read tool-side; NASTF not required. Newest NATS-6 chassis (2010+) may dealer-bind on some VINs.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- AKL accessory needs: Autel IMKPA Nissan token for cloud calc on newer NATS-6 VINs, Lonsdor LKE Smart Key Emulator for K518 simulated-key path. APB112 simulator and G-Box bench EEPROM NOT mandatory. XP400 PRO only needed if BCM/NATS EEPROM is corrupted (rare).
Lockout
Door pick / decode: Lishi NSN14 (CW).
