Oldsmobile Aurora 2nd generation (2001–2003) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- B111

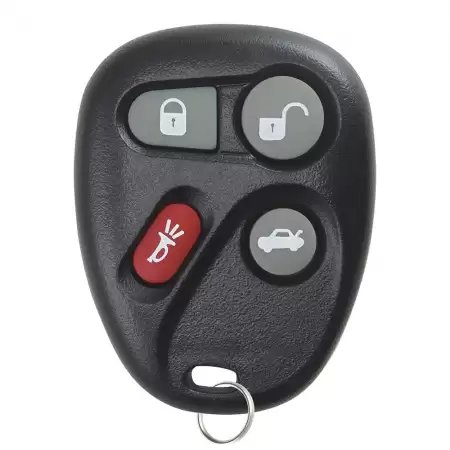

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · KOBLEAR1XT | 2001-2003 (KOBLEAR1XT; some early-2001 production carries the carry-over KOBUT1BT) | KOBLEAR1XT | 25695954 | none | 315 MHz | CR2032 | n/a |
| transponder · B99-PT 5928821 | 2001-2003 (all trims) | n/a | 15821269 | Megamos ID13 (PK3) | n/a | n/a | B99-PT |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN - Passlock relearn.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Oldsmobile Aurora 2nd gen, 2001-2003) spans the GM Passlock era — uses resistor pellet (not transponder chip). Aurora 2 is the GM G-body sedan with shared IMMO with Cadillac Seville STS. On-board 30-minute relearn cycle with stable 12V+ is standard.
- AKL via on-board cycle works — Passlock has no "all keys lost" lockout. No special tool needed if 30+ min available.
Lockout
Door pick / decode: Lishi B111 (CW).
30 verified sources · Last verified: 2026-08-06
