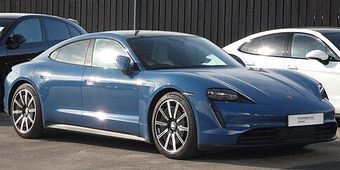

Porsche Taycan EV 1st (Y1A) (2020–2025) — Key Programming Reference
- Difficulty
- expert
- Lishi / lockout
- HU66
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 433.47-434.37 MHz · IYZ-PK3 | 2020–2025 all markets (Taycan / 4S / Turbo / Turbo S / GTS, incl. Cross Turismo & Sport Turismo) | IYZ-PK3 | 9J1959753AC | Megamos AES (HITAG Extended / MLB platform) | 433.92 MHz (grant band 433.47–434.37 MHz) | CR2032 | HU162 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Porsche PIWIS dealer ticket.
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Clear IMMO/cluster DTCs.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Porsche Taycan Y1A, 2020-2025) spans the Porsche J1 EV platform shared with Audi e-tron GT F8 — uses VAG MLB Evo IMMO architecture but with Porsche-specific security ticket flow. Autel IM608 II + XP400 Pro + APB112 may complete early Y1A builds via OBD; SFD2-equivalent Porsche security from 2023+ often requires dealer PIWIS ticket. Verify SFD2 status before quoting.
- Online security ticket may be required for 2018+ MLB Evo models.
- Newest Porsche (Cayenne 9YA/9YB, 911 992, Taycan/Macan EV, 2019+) can require dealer-bound Porsche PIWIS security ticket — narrow aftermarket coverage.
- AKL erases existing keys — bring minimum 2 new Porsche smart key blanks.
- Porsche Taycan EV: 12V battery support critical. narrow aftermarket coverage.
Lockout
Door pick / decode: Lishi HU66 (CW).
12 verified sources · Last verified: 2026-08-10
Open full case in KeyAssist →Step-by-step tool menu paths, verified source links and video guides for this case are in the KeyAssist app — free to start, works offline.
