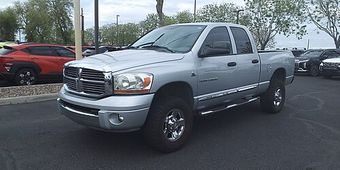

RAM 2500/3500 3rd (2003–2009) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- CY24
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

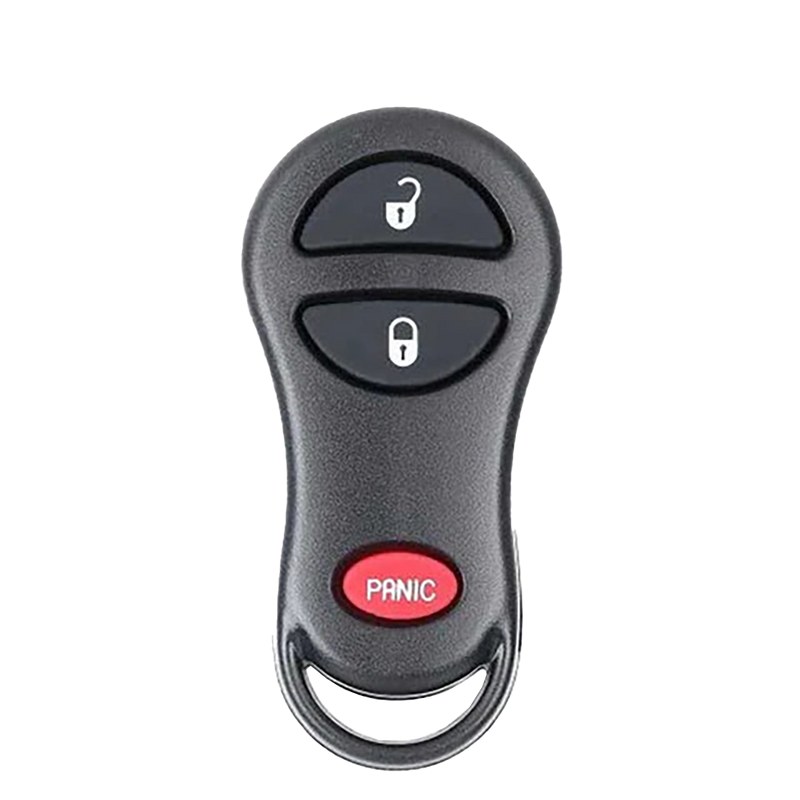

| 315 MHz · GQ43VT17T | 2003–2005 NA (early 3rd gen DR-HD) | GQ43VT17T | 04686481AA | none | 315 MHz | CR2016 (2x) | n/a |
| 315 MHz · OHT692427AA | 2006–2009 NA (late 3rd gen DR-HD) | OHT692427AA | 56040649AC | Philips ID46 (PCF7941, HITAG-2) | 315 MHz | CR2032 | Y159 (Y157 equivalent; Lishi CY24) |
| transponder · Y160-PT | 2003–2005 NA (bladed immobiliser key; pairs with the GQ43VT17T fob, vi 0) | n/a | 05010366AA | Texas 4D64 (ID64) | n/a | n/a | Y160-PT (ILCO EZ Y159, ILCO P1795, Silca CY24, Jet/Keyline Y159) |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/autokeyprog/dealer.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · n/a.
- Bring: Photo ID + vehicle registration. Title for AKL strongly recommended.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Dodge RAM 2500/3500 3rd gen heavy-duty, 2003-2009) spans the Chrysler SKIM PCF7935 → PCF7941 ID46 chip transition — pre-2005 typically PCF7935, 2005+ typically PCF7941 ID46. Verify chip by reading existing key. Chrysler SKIM requires 4-digit PIN from NASTF VSP, autokeyprog.com, or Tech Authority subscription.
Lockout
Door pick / decode: Lishi CY24 (CW).
57 verified sources · Last verified: 2026-08-10
