Scion FR-S 1st generation (2013–2016) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- TOY43

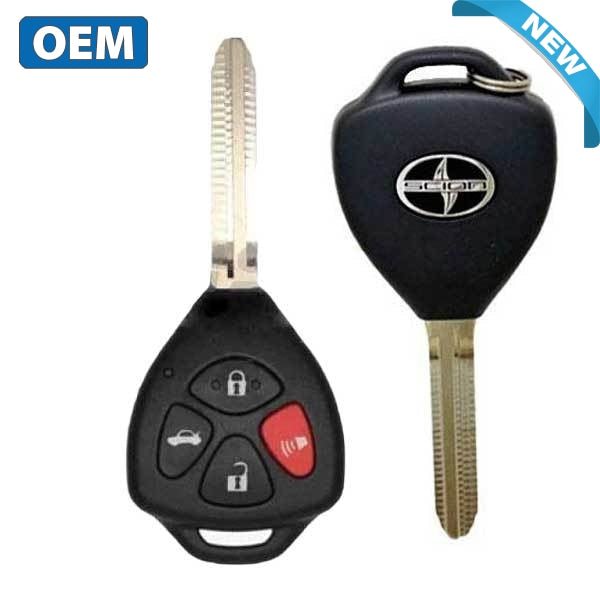

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 314.35 MHz · HYQ12BBY | 2013–2015 NA all trims | HYQ12BBY | SU003-01445 | Texas 4D60 G (80-bit DST80) | 314.35 MHz | CR2016 | TR47 / TOY43 |
| 314.35 MHz · HYQ12BEL | 2015–2016 NA all trims (PN continues into Toyota 86 2017+) | HYQ12BEL | SU003-05282 | Texas 4D60 G (80-bit DST80) | 314.35 MHz | CR2016 | TR47 / TOY43 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Toyota cloud seed-code.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Scion FR-S G chip smart/remote key requires professional OBD tool — no self-programming procedure for this transponder family.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Scion FR-S uses Texas G chip (4D60 / 4D72, DST80 80-bit). G-chip OBD enrolment supported natively by Autel IM608 Pro II, Lonsdor K518 USA, OBDSTAR X300 DP Plus, and Xhorse VVDI Key Tool Plus. Newer 2024+ Autel US firmware may need IMKPA token ($5-15/session) for seed-code calc on some VINs. Standard 16-pin DLC path; no XP400 PRO bench, no APB112 simulator needed for OBD-only add-key.
- Smart proximity key: ensure existing key fob battery is functional before starting.
- Verify chip before booking: H-chip vs G-chip vs 4A AES generations share a fob shell but use different cryptosystems — confirm transponder ID from a working key with Lonsdor K518 reader before quoting.
- Tool kit context: most aftermarket flows use Autel IMKPA accessory or Lonsdor LKE Smart Key Emulator for cloud seed-code; Autel APB112 simulator and Autel G-Box bench EEPROM are NOT required for OBD-only add-key on this Toyota family. XP400 PRO only needed for damaged ECU EEPROM dump fallback.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Scion FR-S G chip smart key — professional tool mandatory.
- AKL for Toyota/Lexus G chip typically needs dealer-issued PIN or seed-code cloud calc — confirm OBD AKL path before quoting.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- AKL accessory needs: Autel IMKPA Toyota module for cloud seed-code calc, Lonsdor LKE Smart Key Emulator for K518 simulated-key AKL path. APB112 simulator and Autel G-Box bench EEPROM are NOT mandatory for standard AKL on this Toyota family — only XP400 PRO is needed if the ECU EEPROM is corrupted (rare).
Lockout
Door pick / decode: Lishi TOY43 (CW).
