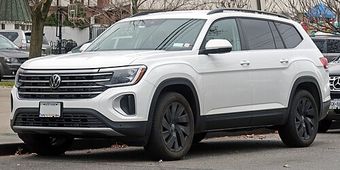

Volkswagen Atlas 2nd (CB) (2024–2025) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HU66
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

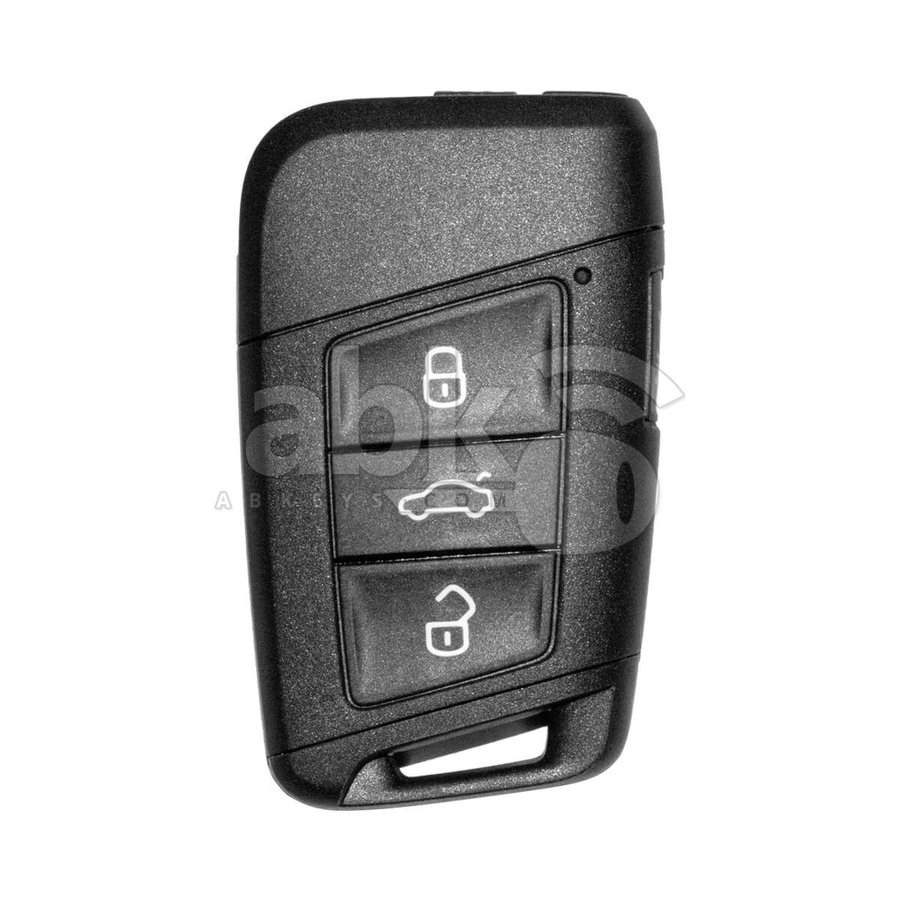

| 434 MHz · NBGFS1901S | 2024-2025 NA (CB facelift — NEW key generation, not the 2018-2023 CA key) | NBGFS1901S | 5H0959753BK | Megamos AES (MQB / NCF2161W, ID88) | 433.92 MHz | CR2032 | HU162T |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Audi Erwin / dealer ticket.
- Online / server access: required — None.
- On-board (no tool) sequence: not available — VAG MQB / IMMO 4-5 (2012-2019 era) uses Security Access (SA51/SA52) via OBD with instrument cluster data dump. Add Key/AKL requires reading IMMO data from cluster (Bosch / Magneti Marelli / Continental), generating key file via VVDI MQB Plus / Autel MQB package, then writing to new key. Key file generation typically takes 1-2 minutes. Some Audi B9 / MLB Evo platforms (2017+) require Audi ONLINE security via XENTRY-style flow — limited locksmith support, may need dealer involvement.
- On site: engine off.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (VW Atlas 2 CB refresh, 2024-2025) spans VAG MQB Evo era — pre-2024 Atlas used MQB-B, 2024+ refresh moves to MQB Evo with SFD2 protection. IM608 II + XP400 Pro + APB112 typically completes pre-SFD2 builds via OBD cluster dump; SFD2-enabled VINs can require dealer ONLINE security ticket via Erwin portal. Verify SFD2 status by VIN before quoting.
- Battery support recommended for VAG MQB session (cluster data dump takes time).
- Atlas 2 (2024+) chip data not separately confirmed — often ID88 like other modern MQB.
- AKL erases all existing key registrations — bring minimum 2 new key blanks (XSMA1EN or compatible MQB-prepared blank).
Lockout
Door pick / decode: Lishi HU66 (CW).
27 verified sources · Last verified: 2026-08-10
