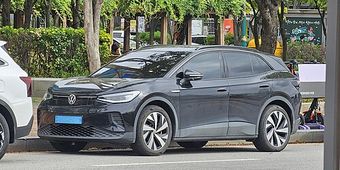

Volkswagen ID.4 EV 1st (E21) (2021–2025) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HU66
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

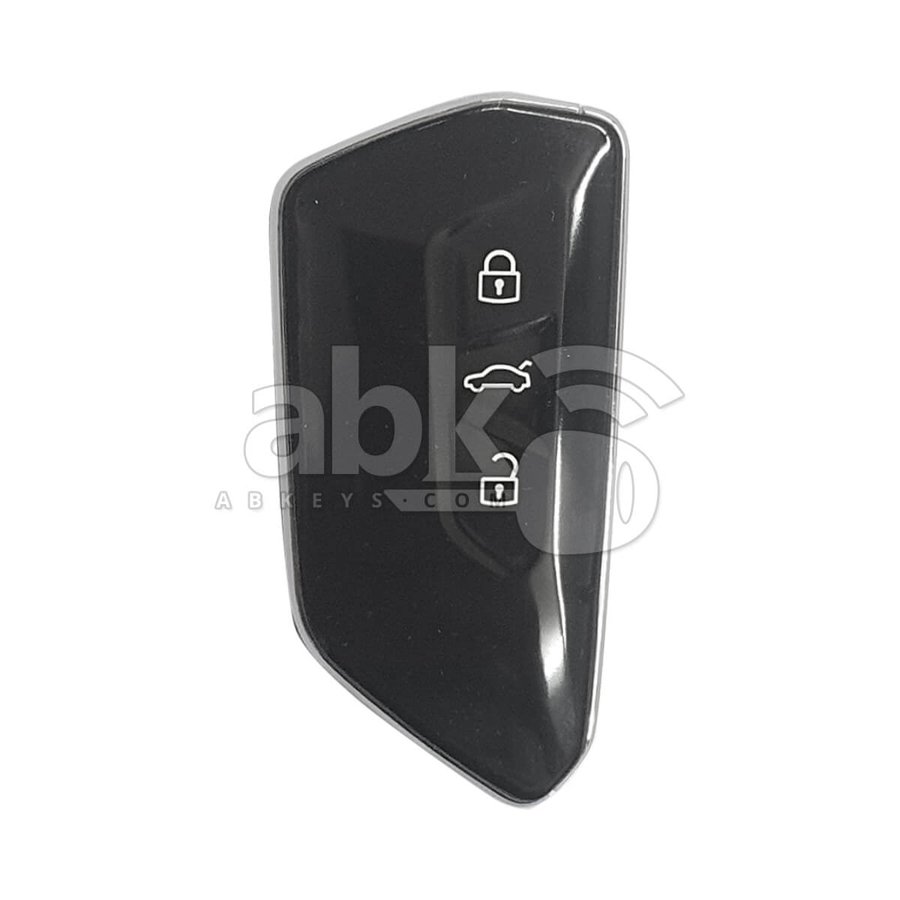

| 433 MHz · NBGFS19 | 2021–2025 (NA 2021–2025; Europe late-2020 MY2021–2025; Australia 2025) | NBGFS19 | 5H0959753JR / 5HG959753B | Megamos AES / MQB49 (NXP NCF2161W, HITAG Extended) | 433.46-434.36 MHz (RKE) + 6520-7560 MHz UWB | CR2032 | HU66 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Audi Erwin / VW dealer ticket.
- Online / server access: required — None.
- On-board (no tool) sequence: not available — Audi B9 / MLB Evo (A4/A5/A6/A7/A8/Q5/Q7/Q8 2017+) is newer MQB-derivative with stricter security. Add Key/AKL requires Audi ONLINE security access (factory scan tool flow). Xhorse VVDI Key Tool Plus + ACDP module pair or Autel IM608 II with Audi MLB Evo package may work for some 2017-2020 builds. Newest builds (2021+) often require dealer with Audi VIN-bound security ticket. Confirm coverage with tool vendor before quoting.
- On site: engine off.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (VW ID.4 E21, 2021-2025) spans the first US-market MEB EV platform — uses Megamos AES (HITAG Extended) chip like MQB Evo but with MEB-specific cluster security. IM608 II + XP400 Pro + APB112 sometimes works via VW MEB menu for early builds; later builds add SFD2-style protection that can require dealer ONLINE security ticket. Verify VIN-specific SFD2 status before quoting.
- Battery support recommended for VAG MQB session (cluster data dump takes time).
- Audi B9 / MLB Evo (2017+): can require dealer-only ONLINE security ticket for newest builds. Verify Autel/Xhorse coverage for the exact VIN before scheduling.
- VW ID.4 EV uses MEB platform — newer security than MQB. Verify Autel/VVDI MEB coverage before quoting.
- AKL erases all existing key registrations — bring minimum 2 new key blanks (XSMA1EN or compatible MQB-prepared blank).
- ID.4 EV: 12V battery support critical during AKL. HV system in standby (READY off).
Lockout
Door pick / decode: Lishi HU66 (CW).
24 verified sources · Last verified: 2026-08-10
