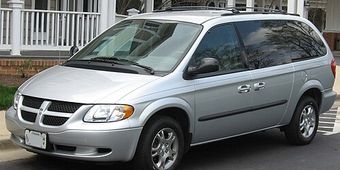

Dodge Grand Caravan 4th gen (2001–2007) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- CY24
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

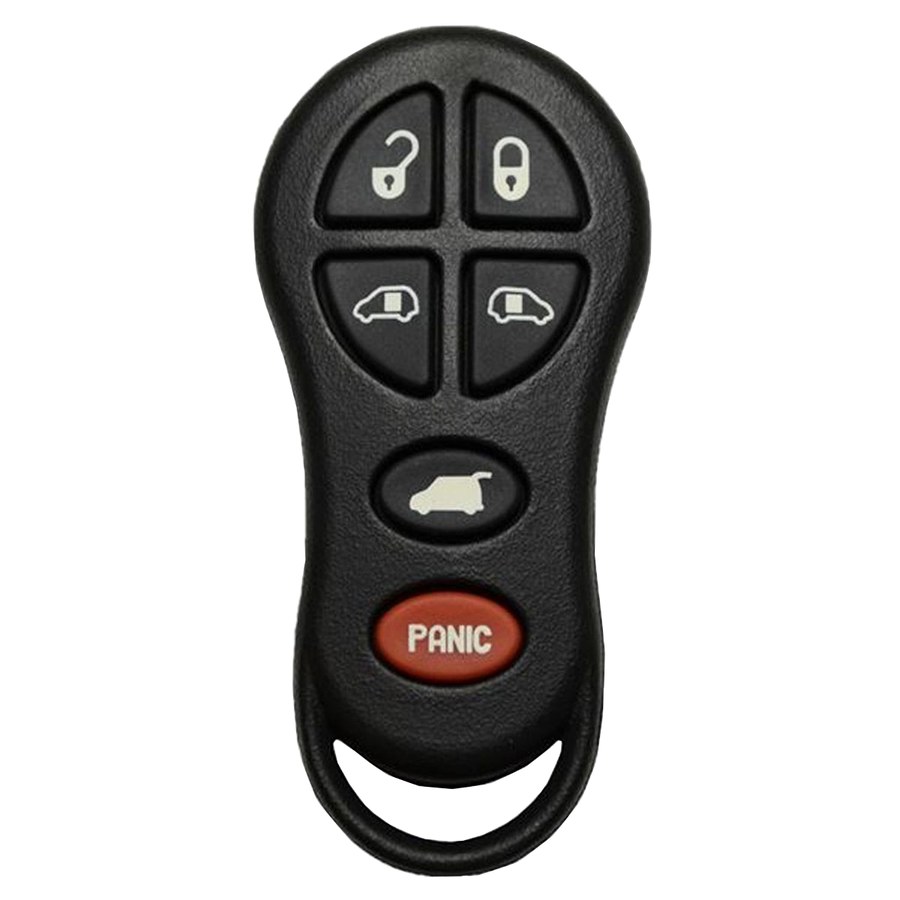

| 315 MHz · GQ43VT18T | 2001–2003 (RF-only fob; paired with the separate Sentry Key transponder ignition key, variant 2) | GQ43VT18T | 04686797 | none | 315 MHz | CR2016 | n/a |
| 315 MHz · M3N5WY72XX | 2004–2007 (one-piece integrated remote head key — blade + ID46 transponder + buttons in one body) | M3N5WY72XX | 05183686AA | Philips/NXP ID46 (PCF7941, Hitag2) | 315 MHz | CR2032 | Y159 / Y160-PT |
| transponder · Y160-PT 4D64 | 2001–2003 (separate bladed ignition key paired with the RF-only fob, variant 0; 2004+ this function is absorbed into the integrated remote head key, variant 1) | n/a | 05010366AA | Texas 4D64 (Chrysler Sentry Key / SKIM) | n/a | n/a | Y160-PT (Y159 keyway / CY24) |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/autokeyprog/dealer.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · n/a.
- Bring: Photo ID + vehicle registration. Title for AKL strongly recommended.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Dodge Grand Caravan 4th gen RS/RG, 2001-2007) spans the Chrysler SKIM PCF7935 → PCF7941 ID46 chip transition — pre-2005 typically PCF7935, 2005+ typically PCF7941 ID46. Grand Caravan 4 shares minivan platform with Chrysler Town & Country 4. Verify chip before ordering blanks.
Lockout
Door pick / decode: Lishi CY24 (CW).
61 verified sources · Last verified: 2026-08-10
