Ford EcoSport 2nd generation (2013–2017) — Key Programming Reference
Model years covered: 2013, 2014, 2015, 2016, 2017
- Difficulty
- medium
- Lishi / lockout
- HU101
Key fobs & transponder keys (1 variant)
| Photo | Key | Years | Market | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|---|---|
 | 433.92 MHz · KR55WK48791 | 2013-2017 (global pre-facelift; Brazil/South America, Europe, India/Thailand/China/Vietnam, Mexico — NOT US/Canada, which launched MY2018 facelift in a separate case) | Americas · Europe · Asia-Pacific · Other | KR55WK48791 | 1782036 | 4D63 (ID63, 80-bit Texas Crypto) | 433.92 MHz | CR2032 | HU101 (Ford laser/sidewinder) |

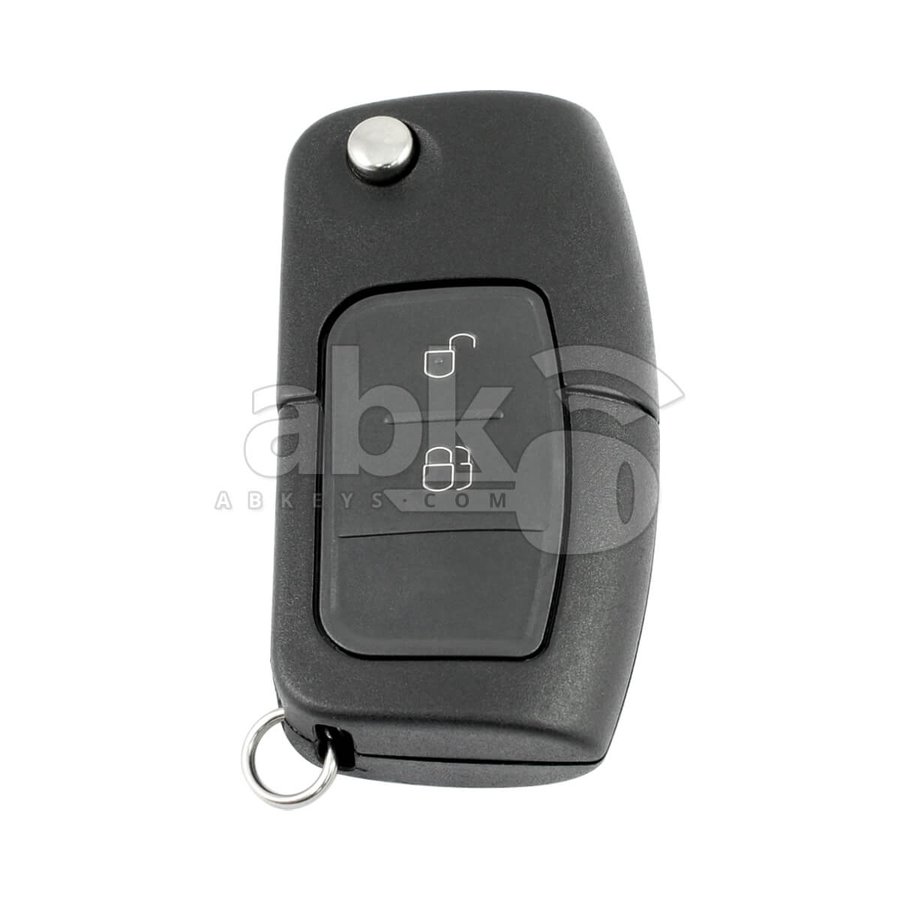

Flip remote key (2-button, 433.92 MHz, Continental) · FCC ID KR55WK48791 · P/N 1782036
Not to confuse with: 2018+ NA EcoSport (facelift) was sold in USA and has FCC-certified remotes. This 2013-2017 generation was not officially sold in North America.
11 sources · verified 2026-08-05
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/forscan/autokeyprog.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · n/a.
- Bring: Photo ID + vehicle registration. VIN for dealer key code lookup.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus (add key) · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Ford EcoSport 2 pre-facelift, 2013-2017) is EU-launched — NA launch happened 2018+ with facelift. Pre-facelift uses Ford Modular IMMO with HITAG-PRO ID49 chip typical. NA aftermarket coverage is narrow because the EU pre-facelift was not sold in the US. Verify Ford NA tool coverage by VIN before quoting.
Lockout
Door pick / decode: Lishi HU101 (CW).
11 verified sources · Last verified: 2026-08-05
Open full case in KeyAssist →Step-by-step tool menu paths, the full source list and video guides for this case are in the KeyAssist app — free to start, works offline.
Security-gateway / bypass-cable requirements for this vehicle are covered in the Gateway & Access reference — open it in the app.
Quick answers
- What FCC ID does the Ford EcoSport 2013–2017 key use?
- KR55WK48791 — flip key.
- What transponder chip does the Ford EcoSport 2013–2017 key use?
- 4D63 (ID63, 80-bit Texas Crypto) — flip key.
- What key blade and Lishi tool fit the Ford EcoSport 2013–2017?
- Key blade: HU101 (Ford laser/sidewinder). Lishi: HU101.
- What OEM part number does the Ford EcoSport 2013–2017 key use?
- 1782036 — flip key.
