Ford EcoSport 2nd generation (2018–2022) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- FO38
Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

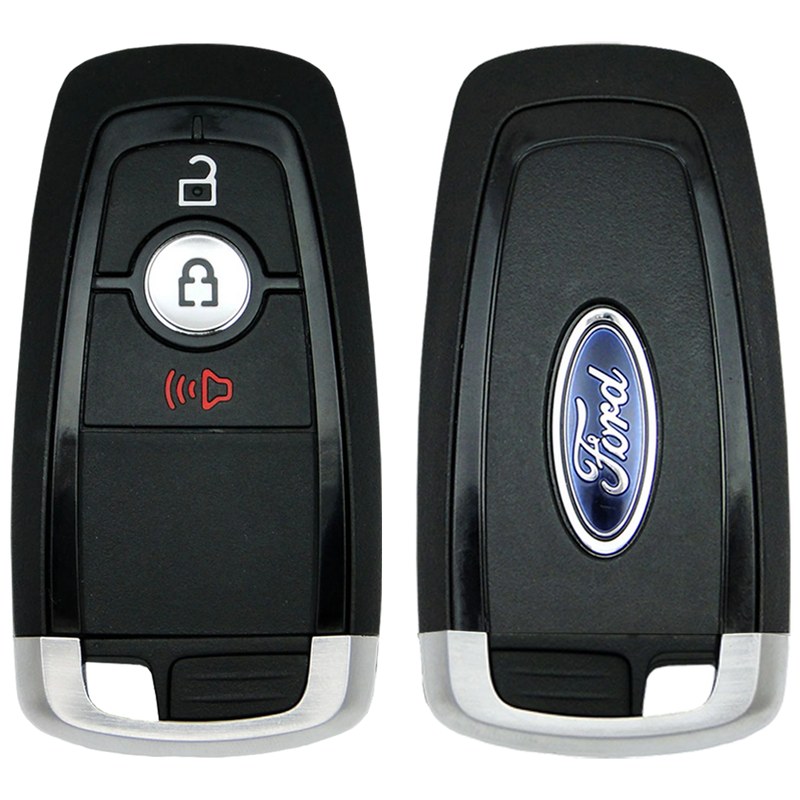

| 315 MHz - M3N-A2C931423 | 2018-2022 NA (US/Canada launch generation) | M3N-A2C931423 | 164-R8163 | NXP HITAG-Pro ID49 (128-bit) | 315 MHz | CR2450 | HU101 |
| 433.92 MHz · 5WK48791 (KR55WK48791) | 2013-2017 (this key's documented window) — but the real fix is structural: this variant duplicates ford_ecosport_2_2013_2017 vi0 (same pn 1782036, same fcc KR55WK48791) and does not belong in the 2018-2022 case at all | KR55WK48791 | 1782036 | Texas 4D63 (80-bit, DST80) | 433.92 MHz | CR2032 | HU101 (flip blade) |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/forscan/autokeyprog.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · n/a.
- Bring: Photo ID + vehicle registration. VIN for dealer key code lookup.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Ford EcoSport 2 facelift, 2018-2022 NA-only) spans the NA-market launch of EcoSport 2 — uses Ford Modular IMMO with HITAG-PRO ID49 chip. Autel IM608 II + Xhorse Key Tool Plus + Lonsdor K518 Ford NA packages cover ID49 generation. FORScan with license can read in-code from out-code for PIN-based programming.
Lockout
Door pick / decode: Lishi FO38 (CW).
44 verified sources · Last verified: 2026-08-06
