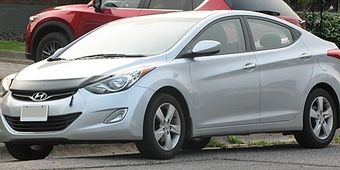

Hyundai Elantra 5th (MD) (2011–2016) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY15
Key fobs & transponder keys (5 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

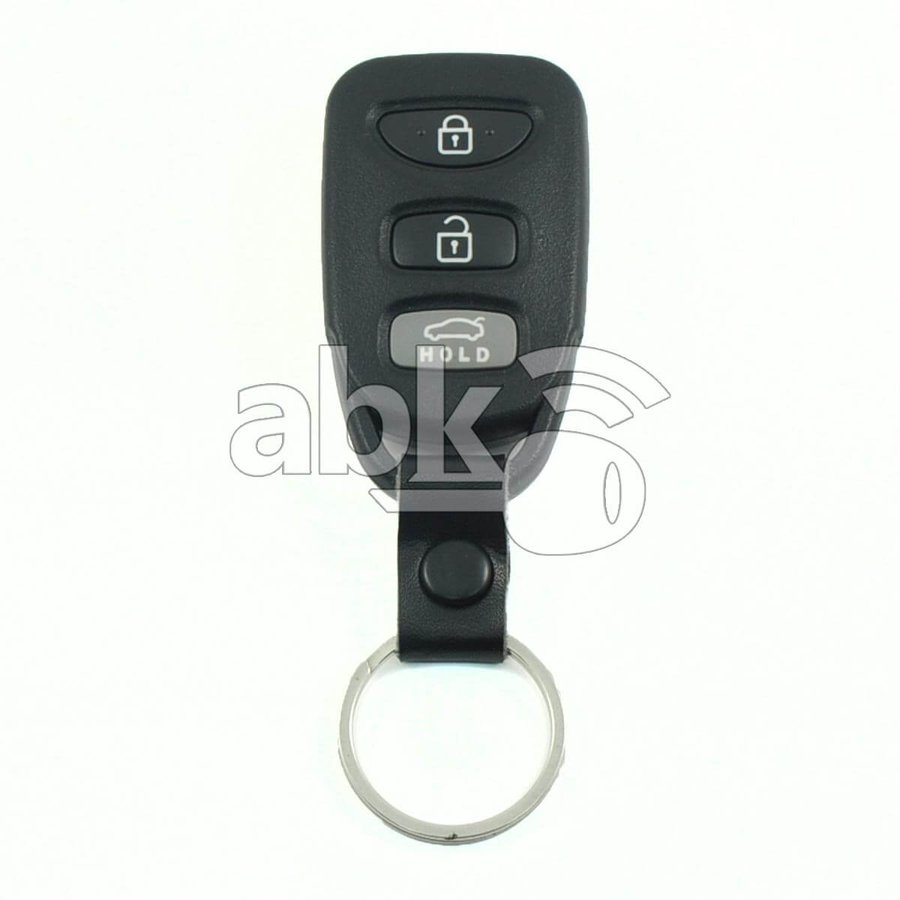

| 313.85 MHz · OSLOKA-360T | 2011–2016 NA — Sedan all trims | OSLOKA-360T | 95430-3X500 | none | 313.85 MHz | CR2032 | none |
| 315 MHz · TQ8RKE-3F03 | 2013–2016 NA — Elantra GT Hatchback | TQ8RKE-3F03 | 95430-A5200 | none | 315 MHz | CR2032 | none |
| mechanical · 81996-2M000 | 2011-2016 NA (Americas only) — all non-push-start Sedan and GT trims | n/a | 81996-2M000 | none | n/a | n/a | HY15 |
| 433.92 MHz · SY5MDFNA433 | 2013–2016 NA — push-button-start trims (incl. 2013-2014 Coupe) | SY5MDFNA433 | 95440-3X500 | Hyundai/Kia 8A smart (HITAG-AES, integrated in fob) | 433.92 MHz | CR2032 | emergency blade HY15 (insert, OEM 81996-B4520) |
| 433.92 MHz · OSLOKA-865T | 2011–2016 — EU, GCC/Middle East, Australia, India, Korea (Avante) | OSLOKA-865T | 95430-3X100 / 95430-3X310 | PCF7936 (ID46, HITAG2) | 433.92 MHz | CR2032 | HY22 (Silca HYN14) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: See risks for PIN source.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+.
- Bring: Photo ID + vehicle registration. VIN for code-cut if no working mechanical key available.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Elantra MD, 2011-2016 NA) has split key system: separate MECHANICAL ignition key (HY15 blade, NO transponder chip, PN 81996-2M000) + separate REMOTE FOB for keyless entry only (OSLOKA-360T 4-btn Sedan PN 95430-3X500/3X501 OR TQ8RKE-3F03 4-btn GT/Touring Hatchback PN 95430-A5200). Verify trim before quoting — Sedan and Hatchback use DIFFERENT FCC IDs (not interchangeable).
- NO transponder IMMO on Elantra MD NA — mechanical ignition key is a pure cut blank, no electronics programming required. This is UNLIKE the prior Elantra HD (2007-2010) which used PCF7936 ID46 transponder. Cutting a new mechanical key requires only the bitting code (decode from existing key or VIN-derived code service); no tool programming. Locksmiths often mistake MD for HD and order wrong blank — verify generation by year + body.
- Remote fob programming is a SEPARATE step from mechanical key cutting. Hyundai/Kia uses an ignition-cycle DIY procedure (when at least one working remote exists) OR dealer/aftermarket tool (when no working remote, or AKL on the remote side). Multiple aftermarket kits ship the OBD-port programming dongle with the remote for owner-DIY programming (Amazon B0F23WGRYF / B0DJQWNK5Y).
- AKL on this chassis splits into two independent jobs: (1) mechanical ignition key — pick/impression/decode (no electronics involvement), (2) remote fobs — re-pair all new remotes via OBD tool (existing remotes are erased when AKL command runs on the remote-learn module).
- For remote AKL: aftermarket tool path required (Lonsdor K518, Autel IM508S/IM608 Pro II, OBDSTAR X300 DP Plus, AutoProPad G3 all confirmed). Manual ignition-cycle remote pairing requires AT LEAST ONE existing working remote — does NOT cover AKL on the remote side.
- Bring minimum 2 new remotes (OSLOKA-360T Sedan OR TQ8RKE-3F03 Hatchback) and minimum 2 new mechanical key blanks (HY15). Verify trim — Sedan AKL needs OSLOKA-360T blanks, Hatchback AKL needs TQ8RKE-3F03 blanks (not interchangeable).
Lockout
Door pick / decode: Lishi HY15 (CCW).
109 verified sources · Last verified: 2026-08-10
