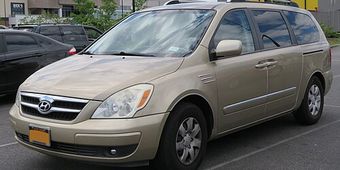

Hyundai Entourage 1st generation (2007–2009) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY15
Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · SV3-100060235 | 2007-2009 NA — all trims | SV3-100060235 | 95430-4J021 | none | 315 MHz | CR2032 | n/a |
| transponder · 81996-4D040 | 2007-2009 NA — required for engine start | n/a | 81996-4D040 | Philips ID46 (PCF7936) | n/a | n/a | HYN14RT14 (left-cut; HY15 test key, ILCO HYN14RT14) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Entourage, 2007-2009) spans the Texas 4D60 → PCF7936 ID46 chip transition era — verify chip before ordering blanks. Hyundai Entourage is the rebadged Kia Sedona BL minivan — shares IMMO platform. IMMO key registration ALWAYS erases ALL previously registered keys.
- All existing keys will be erased and cannot be recovered. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HY15 (CCW).
27 verified sources · Last verified: 2026-08-05
