Hyundai Santa Fe 2nd (CM) (2007–2012) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY15
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

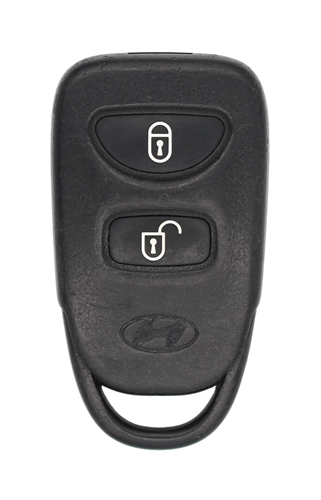

| 315 MHz · PINHA-T038 | 2009–2012 NA (post-PINHA-T038 grant 2009) | PINHA-T038 | 95411-0W100 | none | 315 MHz | CR2032 | n/a |
| transponder · 81996-2B010 | 2007–2012 — required for engine start (all markets, base key hardware) | n/a | 81996-2B010 | Philips ID46 (PCF7936) | n/a | n/a | HYN14R (SILCA HYN14RT14) |
| 447 MHz · 95440-2B800 | 2007–2009 (95440-2B800, 3-btn 447 MHz) → 2010–2012 (95440-2B850, 2-btn 433 MHz) | fcc_id: SVI-SMKFKR00 | 95440-2B800 | Philips/NXP HITAG2 ID46 (PCF7952A) | 447 MHz (2007–2009) / 433 MHz (2010–2012) | CR2032 | HY15 / TOY48 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Santa Fe CM 2nd gen, 2007-2012) spans the Texas 4D60 → PCF7936 ID46 chip transition — 2007-2009 typically 4D60, 2010-2012 typically PCF7936 ID46. Verify chip before ordering blanks. IMMO key registration ALWAYS erases ALL previously registered keys.
- All existing keys will be erased and cannot be recovered. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HY15 (CW).
37 verified sources · Last verified: 2026-08-09
