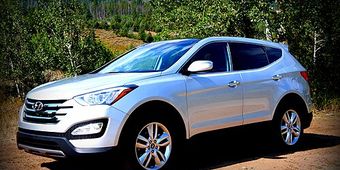

Hyundai Santa Fe 3rd (DM) (2013–2018) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HYN17R
Key fobs & transponder keys (4 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · TQ8-RKE-3F04 | 2013–2016 NA — standard/non-push-start trims | TQ8-RKE-3F04 | 95430-4Z100 | none | 315 MHz | CR2032 | HYN17R |
| 433 MHz · TQ8-RKE-4F31 | 2017–2018 NA — standard/non-push-start trims | TQ8-RKE-4F31 | 95430-2W110 | none | 433.92 MHz | CR2032 | HY18R |
| 315 MHz · SY5DMFNA04 | 2013–2018 NA — push-start Limited/Sport trims (315 MHz) | SY5DMFNA04 | 95440-4Z200 | Philips ID46 (PCF7952A, HITAG-2 128-bit) | 315 MHz | CR2032 | HY20 (vestigial emergency insert) |
| 433 MHz · SY5DMFNA433 | 2015–2018 NA XL/Limited; 2013–2018 EU/Korea/Asia-Pacific push-start (433 MHz) | SY5DMFNA433 | 95440-B8100 | Philips ID46 (PCF7952A, HITAG-2 128-bit) | 433.92 MHz | CR2032 | HY20 (vestigial emergency insert) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Santa Fe DM, 2013-2018) spans three chip families: 4D60 (2013), PCF7936 ID46 (2014-2017), HITAG-AES (2018 facelift) — verify chip before ordering blanks. IMMO key registration ALWAYS erases ALL previously registered keys. Bring minimum 2 new keys + collect all existing keys before procedure.
- All existing keys will be erased and cannot be recovered. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HYN17R (CCW).
93 verified sources · Last verified: 2026-08-08
