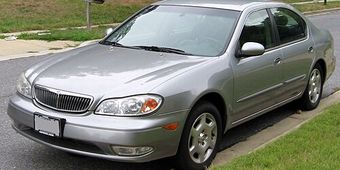

Infiniti I30 / I35 2nd generation (2000–2004) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- NSN14
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

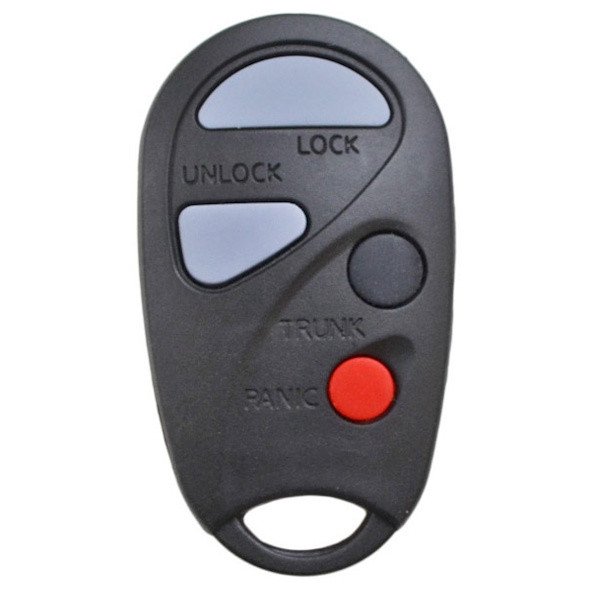

| 315 MHz · NHVWBU43 | 2000-2001 NA all trims (equipped models) | NHVWBU43 | 28268-2Y905 | none | 315 MHz | CR2025 | n/a |
| 315 MHz · KBRASTU15 | 2002-2004 NA all trims (equipped models) | KBRASTU15 | 28268-ZB700 | none | 315 MHz | CR2025 | n/a |
| transponder · 692060 | 2000-2004 NA all trims | n/a | H0564-2W610 | Texas 4D60 (NATS, 80-bit fixed-code) | n/a | n/a | NI01T / NI02T (Ilco; Silca DA34 keyway) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: NATS PIN tool-side via OBD.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Infiniti I30 / I35 NATS 4D60 requires professional OBD tool — no self-programming procedure for this transponder family.
- On site: engine off · Maintain 12V+ · Clear NATS DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Infiniti I30 / I35 uses Texas 4D60 (NATS-3 / NATS-4 era, 2000-2004). Older fixed-code Texas chip — Lonsdor K518 USA + Autel IM608 Pro II + IMKPA Nissan + Xhorse VVDI Key Tool Plus all cover via OBD. Some 1995-2000 chassis (Quest V41, Pathfinder R50, Sentra B14/B15, 240SX) require BCM bench EEPROM dump as fallback when BCM PIN access blocked over OBD.
- Smart proximity or remote head key: ensure existing key fob battery is functional before starting.
- Verify chassis NATS generation before booking: NATS-3/4 (Texas 4D60, pre-2003 typical), NATS-5/6 (PCF7952 ID46, 2003-2013 typical), HITAG-AES (4A chip, 2014+ typical) — confirm transponder ID from a working key with Lonsdor K518 reader. Facelift mid-cycle chip swaps documented on Altima, Sentra, Pathfinder — verify chip before ordering blanks.
- Tool kit context: Autel IMKPA Nissan module ($5-15/session) and Lonsdor LKE Smart Key Emulator for K518 simulated-key flow are the dominant add-key accessories. Xhorse VVDI Key Tool Plus + KH100 Nissan module also confirmed. APB112 simulator, G-Box bench EEPROM NOT required for OBD-only NATS add-key. XP400 PRO only for damaged BCM EEPROM fallback.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Infiniti I30 / I35 NATS-3/4 Texas 4D60 — professional tool mandatory.
- Older 1990s chassis sometimes need BCM bench EEPROM dump if OBD access blocked. Allow 30-60 min on tricky VINs.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- AKL accessory needs: Autel IMKPA + Nissan AES token for cloud calc on HITAG-AES VINs, Lonsdor LKE Smart Key Emulator for K518 simulated-key AKL path, Xhorse KH100 Nissan token. APB112 NOT mandatory. G-Box bench EEPROM NOT used. XP400 PRO only if BCM EEPROM corrupted (rare).
Lockout
Door pick / decode: Lishi NSN14 (CW).
