Kia Carnival (Sedona) 3rd (YP) (2015–2021) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- KK12

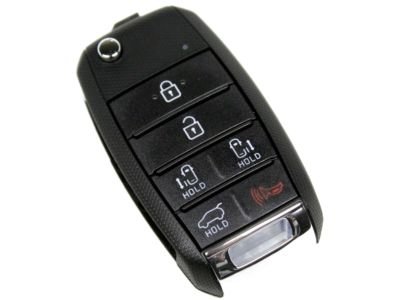

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 433.92 MHz · TQ8-RKE-4F21 | 2015-2018 — YP pre-facelift (Sedona in NA, Carnival in KR/AU/ME/Asia) | TQ8-RKE-4F21 | 95430-A9300 | none | 433.92 MHz | CR2032 | KK10 (HYN17 / Kia high-security) |
| 433.92 MHz · SY5YPFGE06 | 2015-2021 — YP generation Smart-Key trims (Sedona SX / Carnival Platinum) | SY5YPFGE06 | 95440-A9300 | NXP HITAG-3 ID47 | 433.92 MHz | CR2032 | KK10 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Kia Carnival/Sedona YP, 2015-2021) spans the PCF7952 ID46 → HITAG-AES chip transition — 2015-2018 typically PCF7952 ID46, 2019-2021 facelift typically HITAG-AES. Verify chip before ordering blanks. IMMO key registration ALWAYS erases ALL previously registered keys.
- LX trim Carnival/Sedona YP uses non-transponder remote — no IMMO needed. Verify trim has push-button start before scheduling.
- All existing smart key registrations will be permanently erased. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
- LX trim Carnival/Sedona YP uses non-transponder remote — no IMMO needed.
Lockout
Door pick / decode: Lishi KK12 (CW).
