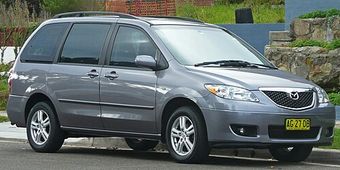

Mazda MPV 2nd generation (2000–2006) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- MAZ24

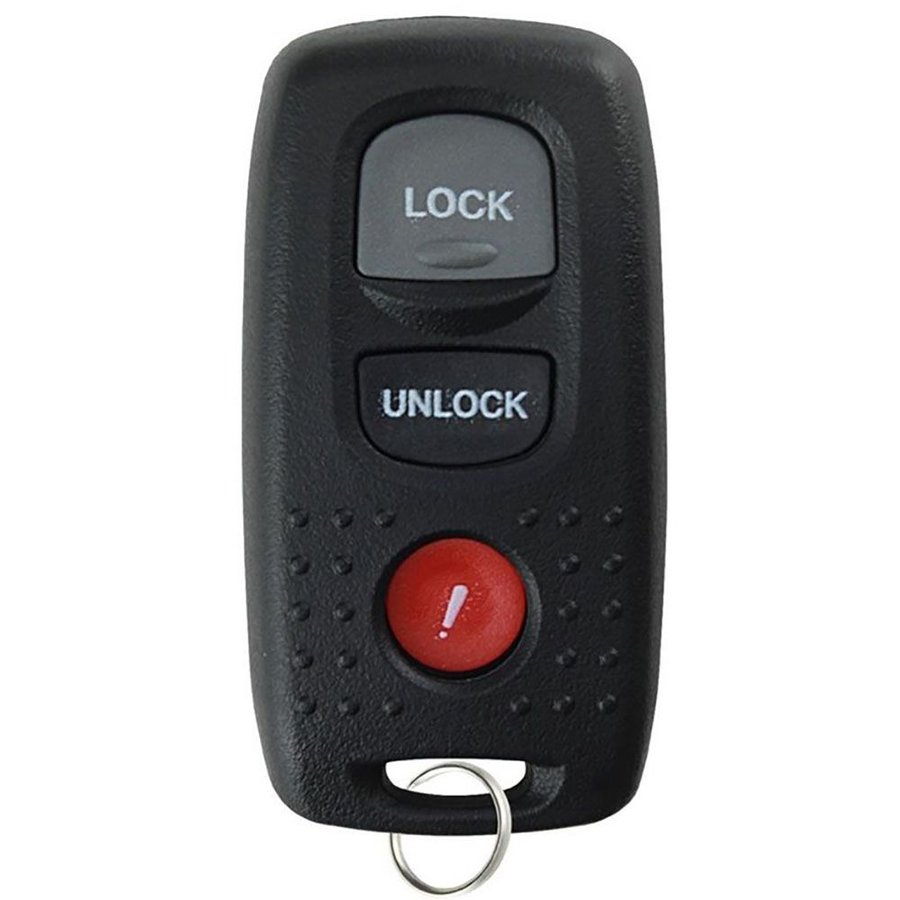

Key fobs & transponder keys (4 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 313.85 MHz · E4EG8D-320A-A | 2000-2001 | E4EG8D-320A-A | LC62-67-5RY | none | 313.85 MHz | CR2025 | n/a |
| 313.85 MHz · OUCG8D-325A-A | 2002-2006 | OUCG8D-325A-A | LD47-67-5RY | none | 313.85 MHz | CR2025 | n/a |
| 313.85 MHz · OUCG8D-333A-A | 2002-2006 | OUCG8D-333A-A | LD52-67-5RY | none | 313.85 MHz | CR2025 | n/a |
| transponder · BJYV-76-2GX | 2000-2006 | n/a | BJYV-76-2GX | Temic 8C (ID8C / TK5561) | n/a | n/a | X249 / MZ31 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN — clone-only.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine on · n/a (off-vehicle process) · n/a.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Autel IM508S · Autel KM100 · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Mazda MPV 2nd gen, 2000-2006) spans vintage Temic 8C → 4C chip transition — pre-2003 typically 8C, 2004-2006 typically 4C. Both are non-rolling fixed-code chips, clone-only via Autel KM100 + Mazda menu. No OBD programming on this era. AKL requires PCM module pull + EEPROM read.
- AKL on vintage non-rolling chip = bench EEPROM read OR dealer IMMO box swap OR bypass module. NO simple OBD AKL exists. Quote accordingly — labor includes IMMO box removal + bench work.
- Vehicle may be older than 20 years — wiring fragility, corrosion risk during IMMO removal.
Lockout
Door pick / decode: Lishi MAZ24 (CW).
81 verified sources · Last verified: 2026-08-09
