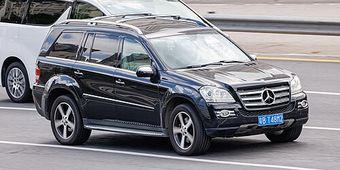

Mercedes GL-Class 1st (X164) (2007–2012) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HU64

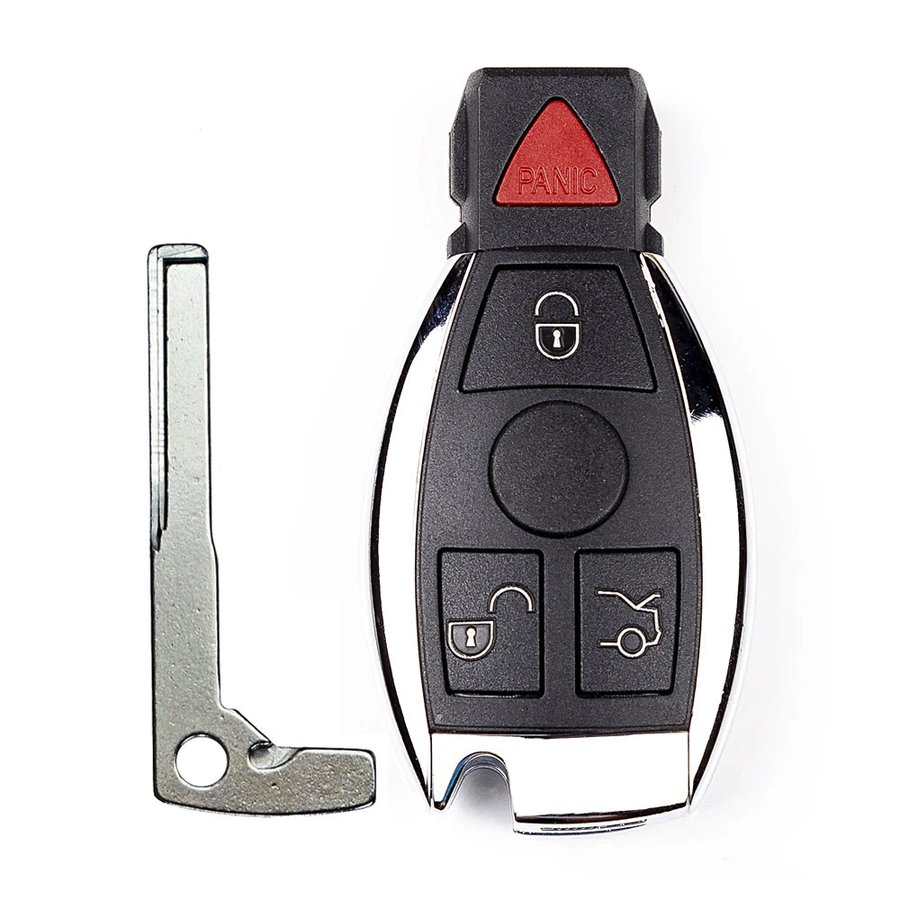

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · IYZDC07 | 2008–2012 NA (IYZDC07 Marquardt grant 2008-07-23; X164 NA run) | IYZDC07 | 2049050800 | Mercedes FBS3 | 315 MHz | CR2025 | HU64 |
| 433.92 MHz · FBS3 NEC Version 08 | 2007–2012 Europe / Australia / GCC / RoW | n/a | n/a | NEC FBS3 (ROM 61/76 "Version 08") | 433.92 MHz | CR2025 | HU64 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN — EIS + tokens.
- Online / server access: required — Cloud token req'd.
- On-board (no tool) sequence: not available — 2007-2012 X164 GL-Class has no DIY onboard programming. Mercedes XENTRY / DAS3 dealer relearn requires SCN coding certificate. Aftermarket Add Key requires VVDI MB Tool + W164/X164 EIS adapter + tokens OR Autel IM608 Pro II + IMKPA + G-Box3 OR CGDI MB.
- On site: engine off · 13V+ aux + charger · Clear EIS + DAS DTCs.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL. VIN cross-check (W204 is widely-counterfeited body — verify VIN-stamp).
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (X164 GL-Class, 2007-2012) is Mercedes FBS3 NEC EIS era — 7-seat full-size SUV sibling of W164 M-Class. X164 shares EIS architecture and key system with W164: same EIS adapter cable, same key PN family, same tool workflow. GL450 / GL550 / GL63 AMG all on standard X164 EIS — no AMG-specific quirk.
- FBS3 NEC on this variant (X164 GL-Class) requires EITHER Autel IM608 Pro II + IMKPA + G-Box3 (OBD path) OR Xhorse VVDI MB Tool / Key Tool Plus + W164/X164 EIS adapter cable (shared SKU with W164 M-Class) OR CGDI MB. X164 is widely-supported on all major FBS3 aftermarket tools.
- X164 AKL is OBD-friendly on full 2007-2012 run. Bench EIS removal only needed for damaged-EIS scenarios. Full-size SUV chassis — verify EIS integrity especially on water-damaged units (W164/X164 EIS water ingress is documented failure mode). GL63 AMG shares standard EIS — no quirk.
- AKL on this chassis erases all previously paired FBS3 keys. Bring minimum 2 new Mercedes FBS3 NEC keys FCC IYZDC07. Wrong FCC means scheduled job cannot start.
- X164 AKL is OBD-friendly compared to X166 FBS4 — full 2007-2012 run supports OBD AKL via Autel IM608 + IMKPA + G-Box3 or Xhorse VVDI MB / Key Tool Plus + W164/X164 EIS cable. Verify EIS integrity before OBD attempt (SUV water ingress risk).
- AKL erases EIS-paired remotes. Recovered old keys will not authenticate. Verify trim: GL320 CDI / GL350 / GL450 / GL550 / GL63 AMG all share X164 EIS architecture (same as W164). 2007-2009 early X164 with first-gen Hella EIS may need slightly different password-calc — IMKPA + Xhorse both auto-detect.
Lockout
Door pick / decode: Lishi HU64 (CW).
27 verified sources · Last verified: 2026-08-10
