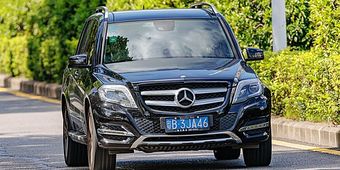

Mercedes GLK 1st (X204) (2009–2015) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HU64

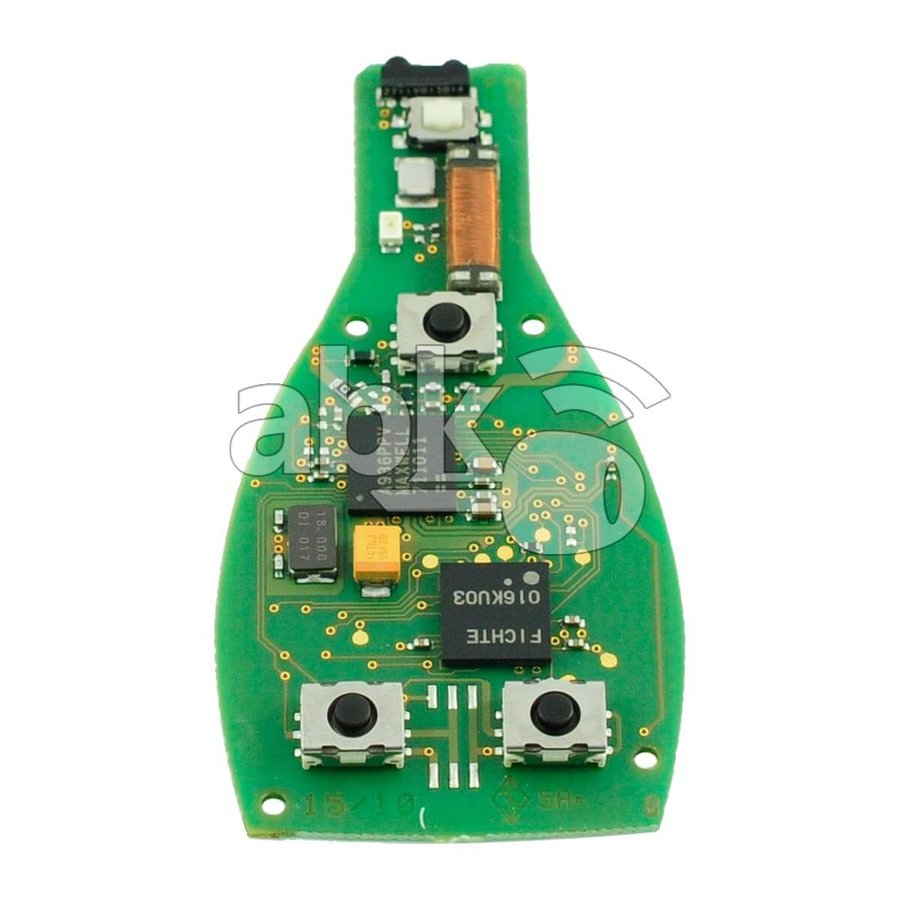

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · IYZDC07 | 2009–2012 NA (MY2010 launch Jan 2009) | IYZDC07 | 204Y50800200 | Mercedes BGA / NEC (FBS3) — infrared immobiliser link, no NXP HITAG transponder | 315 MHz | CR2025 | HU64 |
| 315 MHz · IYZDC11 | 2013–2015 NA (facelift) | IYZDC11 | 204Y51000100 | Mercedes BGA / NEC (FBS3) — infrared immobiliser link, no NXP HITAG transponder | 315 MHz | CR2025 | HU64 |
| 433.92 MHz · A2049051704 | 2008–2015 EU/RoW (Europe launch Jun 2008; China Beijing-Benz from 2011) | n/a | A2049051704 | Mercedes FBS3 | 433.92 MHz | CR2025 | HU64 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN — EIS + tokens.
- Online / server access: required — Cloud token req'd.
- On-board (no tool) sequence: not available — 2009-2015 X204 GLK has no DIY onboard programming. Mercedes XENTRY / DAS3 dealer relearn requires SCN coding certificate. Aftermarket Add Key requires VVDI MB Tool + W204/X204 EIS adapter + tokens OR Autel IM608 Pro II + IMKPA + G-Box3 OR CGDI MB.
- On site: engine off · 13V+ aux + charger · Clear EIS + DAS DTCs.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL. VIN cross-check (W204 is widely-counterfeited body — verify VIN-stamp).
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (X204 GLK, 2009-2015) is Mercedes FBS3 NEC EIS era — compact crossover sibling of W204 C-Class. X204 shares W204 platform + EIS architecture: same EIS adapter cable workflow, same key PN family base. GLK350 / GLK250 BlueTEC / GLK63 AMG all on standard X204 EIS — no quirks.
- FBS3 NEC on this variant (X204 GLK) requires EITHER Autel IM608 Pro II + IMKPA + G-Box3 (OBD path) OR Xhorse VVDI MB Tool / Key Tool Plus + W204/X204 EIS adapter cable (shared SKU with W204 C-Class) OR CGDI MB. X204 is widely-supported on all major FBS3 aftermarket tools.
- X204 AKL is OBD-friendly on full 2009-2015 run. Bench EIS removal only needed for damaged-EIS. Crossover body — water ingress less common than W164/X164 SUVs but still verify EIS integrity before OBD attempt.
- AKL on this chassis erases all previously paired FBS3 keys. Bring minimum 2 new Mercedes FBS3 NEC keys matching trim FCC (IYZDC07 for 2009-2012 OR IYZDC11 for 2013-2015). Wrong FCC means scheduled job cannot start.
- X204 AKL is OBD-friendly compared to X253 GLC FBS4 — full 2009-2015 run supports OBD AKL via Autel IM608 + IMKPA + G-Box3 or Xhorse VVDI MB / Key Tool Plus + W204/X204 EIS cable. Bench EIS removal only for damaged-EIS scenarios.
- AKL erases EIS-paired remotes. Recovered old keys will not authenticate. Verify trim: GLK350 / GLK250 BlueTEC / GLK63 AMG all share X204 EIS architecture (same as W204). 2009-2012 early X204 with NEC-era Hella EIS may have minor password-calc differences vs 2013-2015 — IMKPA + Xhorse both auto-detect.
Lockout
Door pick / decode: Lishi HU64 (CCW).
44 verified sources · Last verified: 2026-08-10
