Mercedes GLC 2nd (X254) (2023–2026) — Key Programming Reference
- Difficulty
- expert
- Lishi / lockout
- HU64

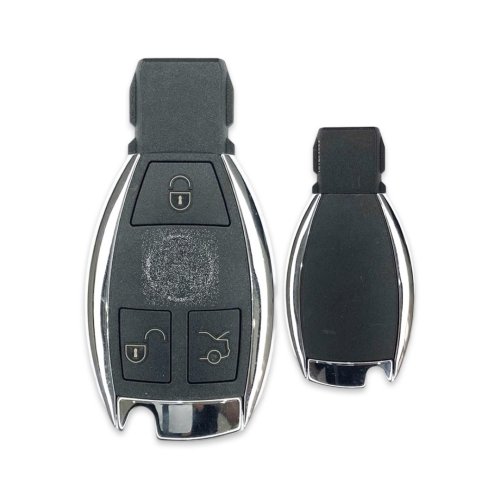

Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 433.92 MHz · IYZMS5I | 2023–2026 | IYZMS5I | A2549050902 | BGA transponder (Mercedes FBS4, NEC) | 433.92 MHz | CR2032 | HU64 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Mercedes XENTRY CSC ticket.
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Clear EIS/IR DTCs.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Mercedes X254 GLC, 2023-2026) spans the C-class W206 SUV sibling on newest FBS4 BGA — no aftermarket Add Key/AKL support yet for 2023+ Mercedes FBS4. IMKPA + IM608 II and Xhorse VVDI MB cover up to W246/W205/W213/W222 generation only. CSC ticket via dealer XENTRY portal (~$50-100 per VIN) is the practical path. Verify Autel/Xhorse X254 coverage before quoting.
- AKL on FBS4 typically requires EIS removal + bench programming.
- Newest Mercedes (2022+) can require dealer-bound CSC ticket — aftermarket coverage limited. Confirm tool vendor coverage for the exact VIN before scheduling AKL.
- AKL erases existing keys — bring minimum 2 new BGA-compatible Mercedes key blanks.
Lockout
Door pick / decode: Lishi HU64 (CW).
24 verified sources · Last verified: 2026-08-17
