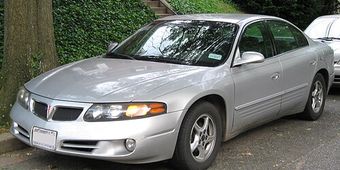

Pontiac Bonneville 9th generation (2000–2005) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- B111

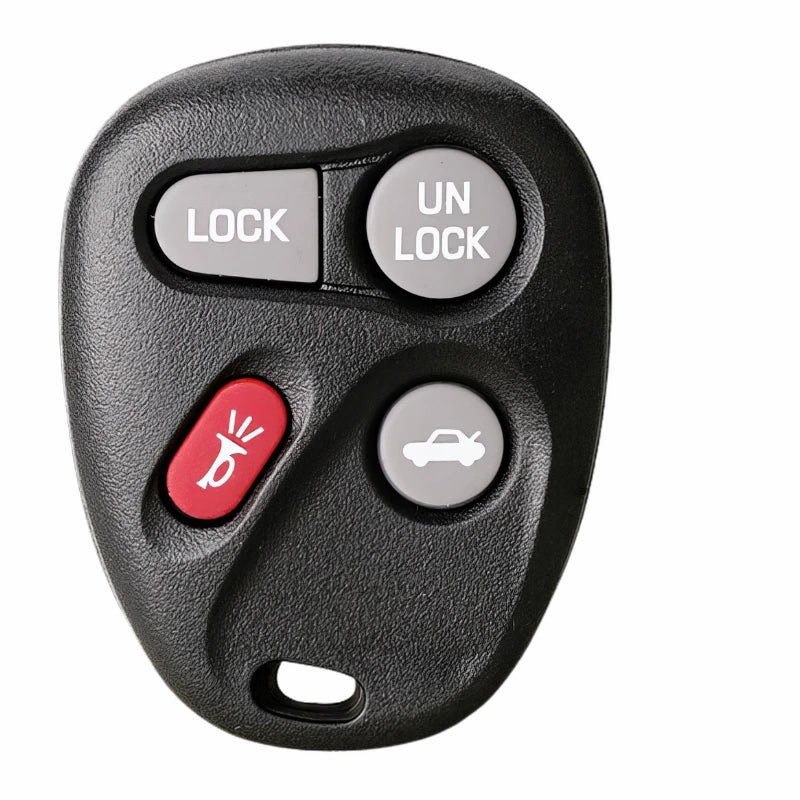

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · KOBUT1BT | 2000 | KOBUT1BT | 25668603 | none | 315 MHz | CR2032 | n/a |
| 315 MHz · KOBLEAR1XT | 2001-2005 | KOBLEAR1XT | 25695954 | none | 315 MHz | CR2032 | n/a |
| transponder · B99-PT 5928821 | 2000-2005 | n/a | 84870459 | Megamos ID13 (PK3) | n/a | n/a | B99 (Ilco B99-PT; Ilco-EZ B102 test key; Strattec 5928821) — 10-cut double-sided GM PK3 keyway |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN - Passlock relearn.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Pontiac Bonneville 9th gen, 2000-2005) spans the GM Passlock era — uses resistor pellet (not transponder chip). Bonneville 9 shares GM G-body platform with Oldsmobile Aurora 2. On-board 30-minute relearn cycle with stable 12V+ is standard. Final Pontiac Bonneville generation.
- AKL via on-board cycle works — Passlock has no "all keys lost" lockout. No special tool needed if 30+ min available.
Lockout
Door pick / decode: Lishi B111 (CW).
51 verified sources · Last verified: 2026-08-10
