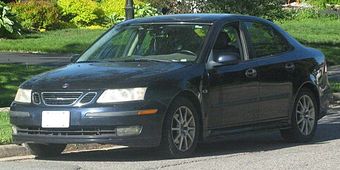

Saab 9-3 2nd generation (2003–2011) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- WT47T
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

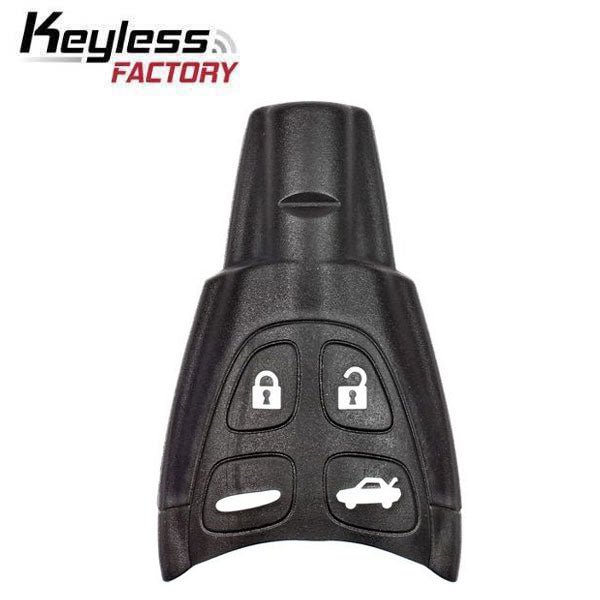

| 433.92 MHz · LTQSAAM433TX | 2003-2011 (Sport Sedan / SportCombi / Convertible) | LTQSAAM433TX | 12783781 | Philips ID46 (PCF7946/HITAG-2) | 433.92 MHz | CR2032 | WT47T 4-track (2003-2007, 2010-2011) / HU100 2-track (2008-2009) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: See risks for PIN source.
- Online / server access: required — OBD tool subscription.
- On-board (no tool) sequence: not available — CIM IMMO requires OBD tool with Saab 9-3 II menu — no published on-board add key procedure for this CIM-controlled platform.
- On site: engine off · 12V battery support needed · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- Blade split spans two profiles across this chassis generation: 2003-2007 and 2010-2011 = WT47T (4-track); 2008-2009 = HU100 (2-track). Verify year before ordering key blank.
- CIM (Column Integration Module) is the IMMO controller on this platform, not a separate BCM. Tool must navigate Saab CIM menu, not generic GM PK3+ menu.
- NA-market 9-3 II runs 433.92 MHz (confirmed esaabparts OES) — do NOT assume 315 MHz.
- Blade split by year: 2003-2007 and 2010-2011 = WT47T (4-track); 2008-2009 = HU100 (2-track). Verify year before ordering blank.
- CIM (Column Integration Module) is IMMO controller — AKL clears all CIM key registrations.
- AKL erases all registered keys — bring minimum 2 new LTQSAAM433TX key blanks.
Lockout
Door pick / decode: Lishi WT47T (CCW).
28 verified sources · Last verified: 2026-08-06
