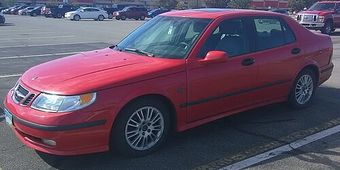

Saab 9-5 1st generation (1998–2009) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- WT47T
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

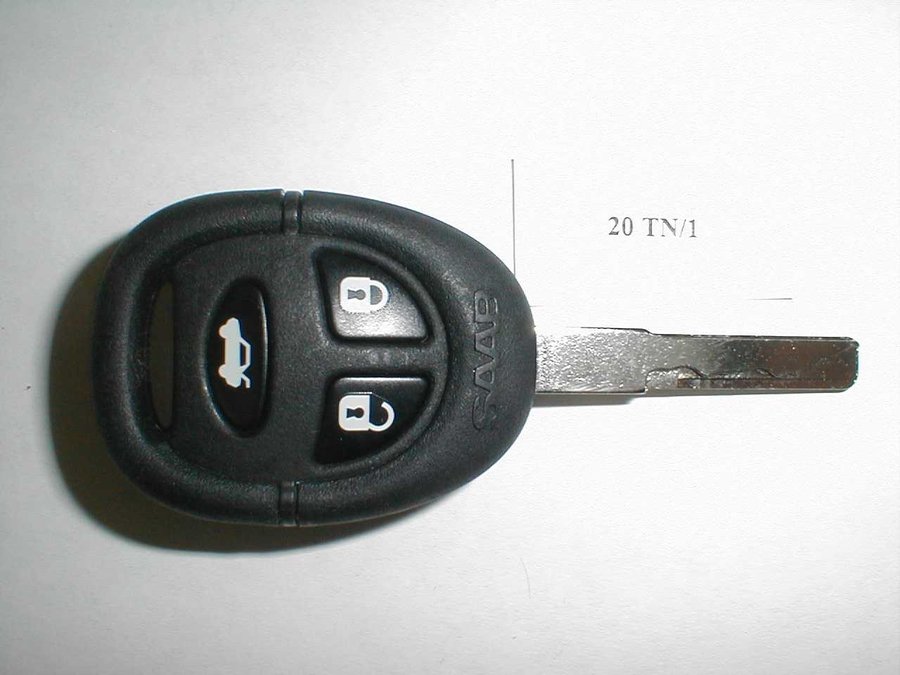

| 315 MHz · KHH20TN-1 | 2001–2009 NA (transmitter PN 5265335). MY1999–2000 cars used a DIFFERENT transmitter, PN 4711966 with a CR2032 cell — not this part. Blade breakpoint is by VIN, not model year: 2-track blank 30584617 up to VIN 33026906, 4-track blank 32018042 from VIN 33026907DB (mid-MY2003). | KHH20TN-1 | 5265335 | Megamos ID13 | 315 MHz | CR1632 | YM30 / WT47 |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN — mechanical only.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · No DTC scan needed.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Saab 9-5 (1998-2009) is pre-immobilizer — no transponder chip. The blade alone starts the vehicle. Locksmith cuts to OEM code from VIN or existing key. No chip-programming tools needed. Remote (if equipped) learned via in-vehicle key sequence per OEM service manual.
- Key/remote: ensure existing battery (if applicable) is functional before starting.
- Tool kit context: Lonsdor K518 USA + Autel IM608 Pro II + IMKPA can reprogram remote-function radio for pre-immobilizer cars if equipped. APB112 simulator, G-Box bench EEPROM, XP400 PRO, LKE Smart Key Emulator NOT applicable to mechanical-only chassis.
- Verify chip before booking (this chassis facelift): mechanical-only pre-immobilizer chassis. Some 1996-1999 facelift versions added transponder mid-cycle — confirm key has no chip with Lonsdor K518 reader before quoting.
- Saab 9-5 pre-immobilizer — no chip-level AKL. Mechanical AKL via lock cylinder rekey or new ignition cylinder if lost lock.
- Bring ALL replacement remotes (if equipped) before starting in-vehicle programming sequence.
- No professional tool needed for blade — only locksmith cut. Remote-only AKL via in-vehicle key dance.
Lockout
Door pick / decode: Lishi WT47T (CCW).
