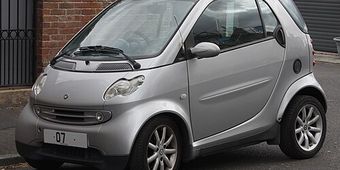

Smart Fortwo 1st (W450) (2004–2007) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- YM23

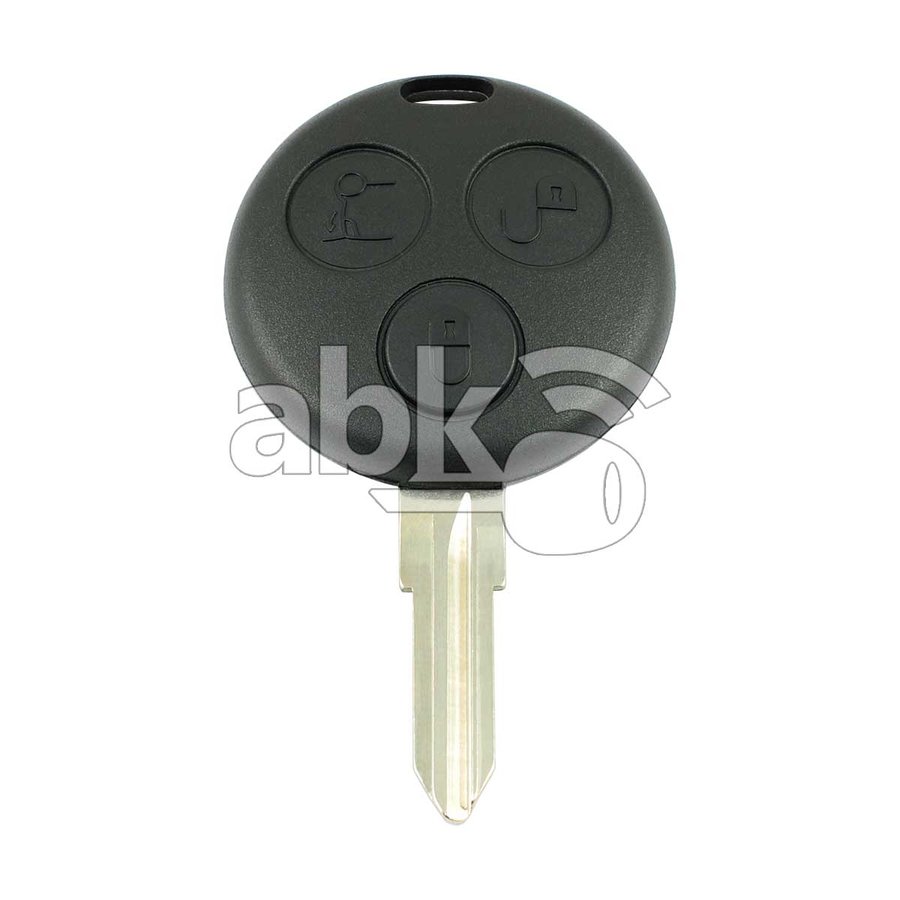

Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 433.92 MHz · A4508200297 | 2004–2007 (Europe 1998-2007; Canada 2005-2006 CDI diesel only; Australia 2004-2008) | n/a | A4508200297 | none | 433.92 MHz | CR1620 | YM23 (Silca profile) |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: Mercedes SAM PIN (EU trim).
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · n/a · n/a.
- Bring: Photo ID + vehicle registration. Title for AKL recommended.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Smart Fortwo W450 2004-2007, EU/NA) spans the original Smart Fortwo with no chip on US-market base trims (2008+ NA pulled from W450, sold W451). EU W450 had ID8E transponder on some trims. Verify by VIN: mechanical YM23 key for non-IMMO trims; EU ID8E requires Mercedes-derived SAM module IMMO procedure.
Lockout
Door pick / decode: Lishi YM23 (CW).
6 verified sources · Last verified: 2026-08-09
Open full case in KeyAssist →Step-by-step tool menu paths, verified source links and video guides for this case are in the KeyAssist app — free to start, works offline.
