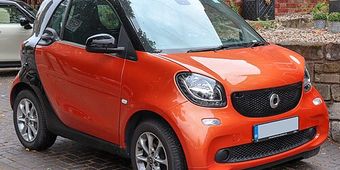

Smart Fortwo 3rd (W453) (2016–2019) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- VA2

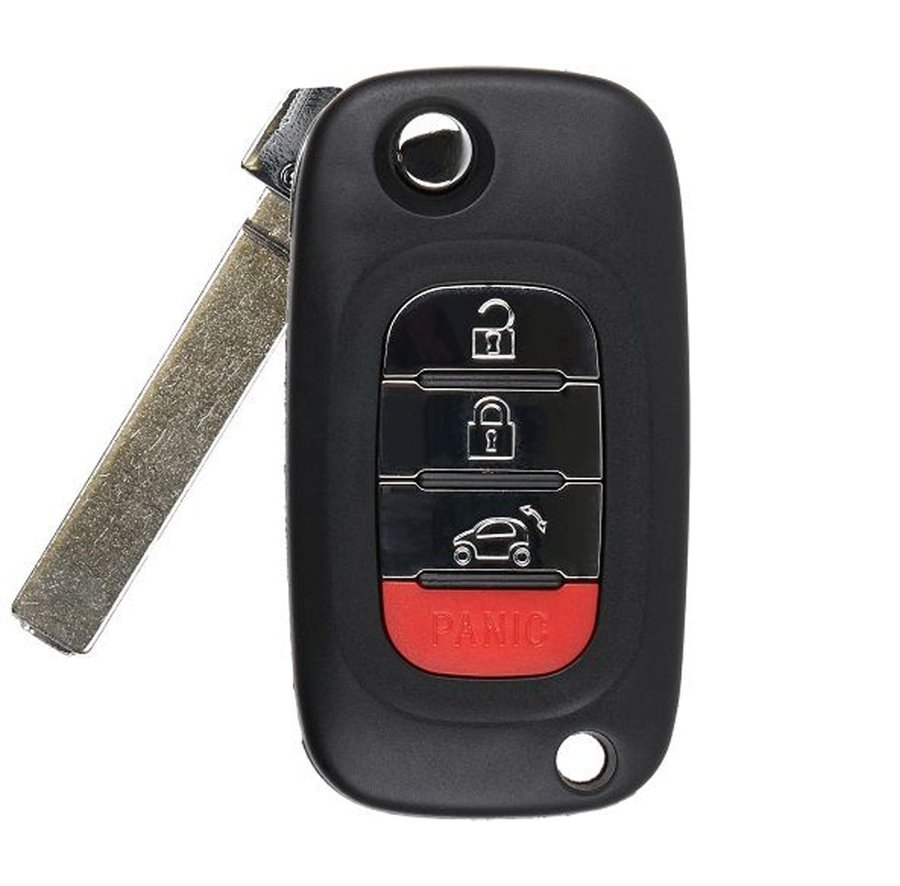

Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 433.92 MHz · CWTWB1G767 | 2016–2019 NA (incl. EQ/electric drive); 2014–2019 EU/RoW W453/W453 ForFour | CWTWB1G767 | 4537607000 | NXP PCF7961M — HITAG AES ("4A") | 433.92 MHz | CR2032 | VA2 (Silca) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN required.
- Online / server access: required — OBD tool cloud required.
- On-board (no tool) sequence: not available — PCF7961M (ID47) IMMO requires OBD tool with Renault/Smart W453 menu — no published on-board procedure confirmed.
- On site: engine off · 12V battery support needed · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (W453, Renault-Daimler co-developed) spans a different IMMO platform from W451 — use Smart W453 or Renault Twingo menu, NOT the W451 Mercedes SAM menu.
- Chip is PCF7961M (ID47) — NOT ID46 used on W451. Wrong chip blank will fail programming.
- Advanced Diagnostics Smart Pro: mhhauto forum (2018) documents bricking on 2016 Smart Fortwo 453. Verify updated W453 token and firmware before attempting.
- W453 is Renault-Daimler co-developed — use Smart W453 or Renault Twingo menu, NOT W451 Mercedes SAM menu.
- Chip is PCF7961M (ID47) — NOT ID46. Wrong chip blank will fail programming.
- AKL erases all registered keys — bring minimum 2 new CWTWB1G767 flip key blanks.
Lockout
Door pick / decode: Lishi VA2 (CW).
21 verified sources · Last verified: 2026-08-10
