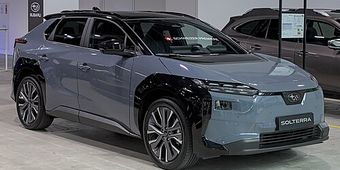

Subaru Solterra EV 1st generation (2023–2025) — Key Programming Reference
- Difficulty
- expert
- Lishi / lockout
- DAT17
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

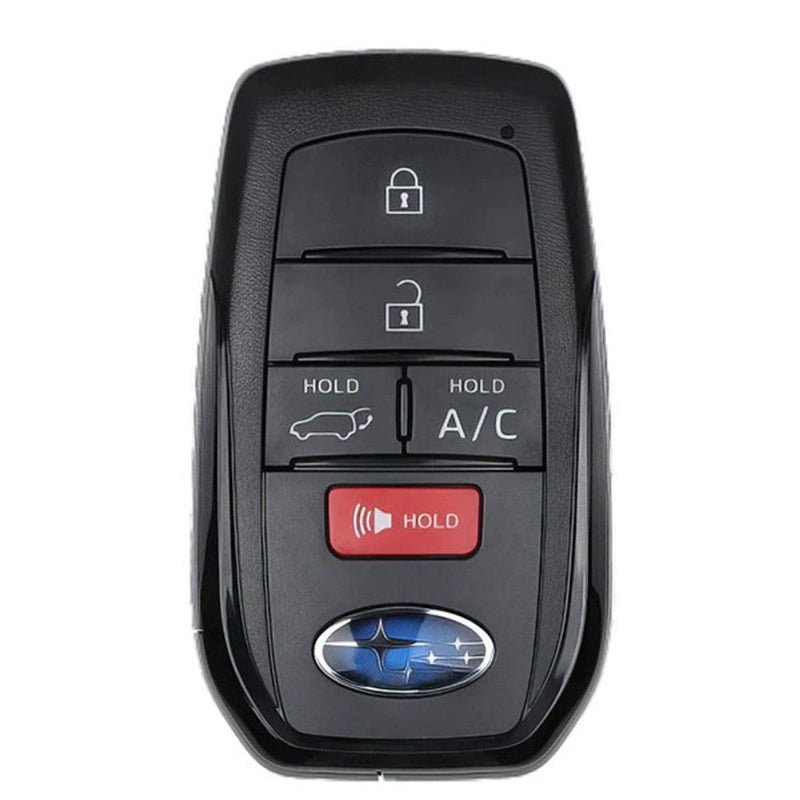

| 315 MHz · HYQ14FBX | 2023-2025 (US 2023 MY launch; some markets show 2022 build) | HYQ14FBX | 8990H-42620 | Texas Instruments DST-AES (ID 8A / H-8A, 128-bit AES) | 315 MHz | CR2450 | TOY51 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN required.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Subaru Texas DST-AES 8A smart key IMMO requires OBD diagnostic tool.
- On site: engine off · Maintain 12V+ · Clear IMMO/BCM DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- No external PIN required for Subaru Texas DST-AES 8A add key. Autel/Smart Pro reads IMMO data internally via OBD.
- No internet required for Autel add key on Subaru Texas DST-AES 8A. Smart Pro ADS2255/ADS2330 requires WiFi for AD server.
- Subaru smart system limit: maximum 4 keys per vehicle. If 4 already programmed, one must be erased before adding new key.
- Solterra shares chassis with Toyota bZ4X — Subaru 8A keys not interchangeable. EV: 12V battery support critical.
- No external PIN required for Subaru Texas DST-AES 8A AKL.
- No internet required for Autel + APB112 AKL on Subaru Texas DST-AES 8A. Smart Pro requires WiFi for AD server.
- Subaru AKL on G-key / 8A proximity requires APB112 simulator (Autel) OR ADC2015 emulator cable (Smart Pro). Verify tool + accessory before scheduling.
- Min 2 new smart keys recommended for AKL.
- AKL erases all existing key registrations — any lost keys will not be retrievable.
- Solterra EV: 12V battery must be healthy for AKL. HV READY system must be off.
Lockout
Door pick / decode: Lishi DAT17 (CW).
13 verified sources · Last verified: 2026-08-08
