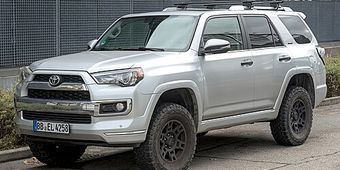

Toyota 4Runner 5th (N280) (2010–2024) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- TOY43AT

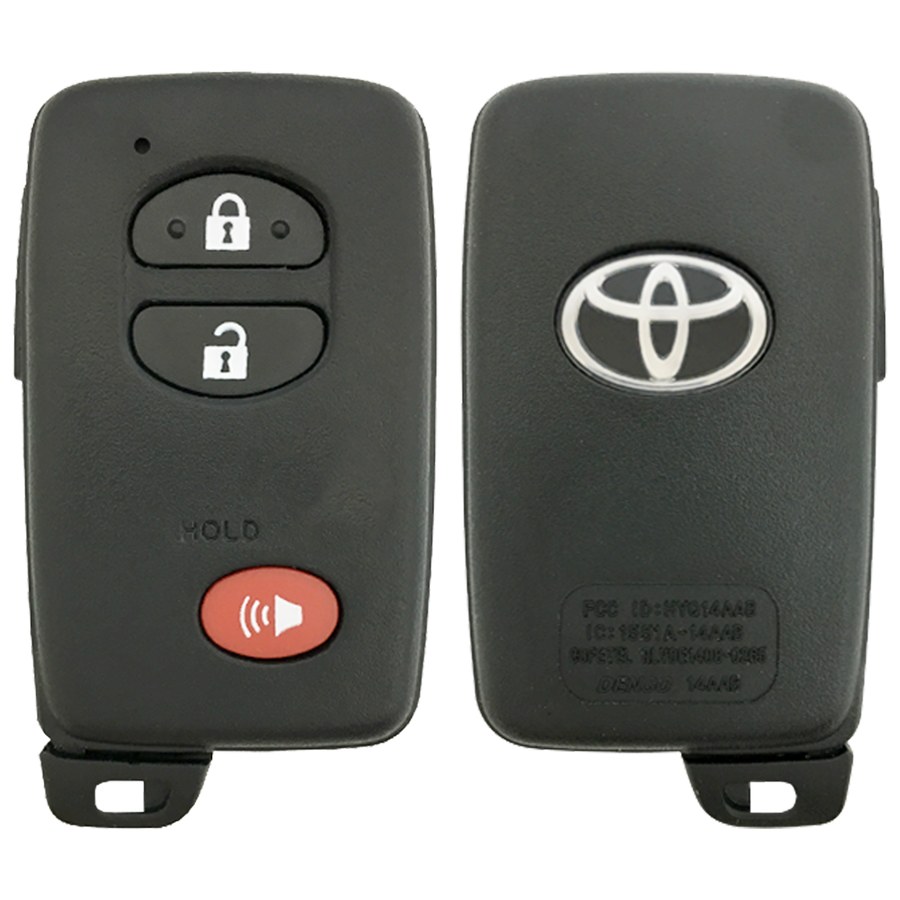

Key fobs & transponder keys (4 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · HYQ14ACX | 2010–2019 NA — smart-key trims (SR5 Premium, Trail, TRD Off-Road, Limited, TRD Pro) | HYQ14ACX | 89904-35010 | Texas 4D-G (TMS37126 DST-4D, 80-bit; board 5290 GNE) | 315 MHz | CR1632 | TR47 emergency insert (mechanical bypass blade inside fob) |
| 315 MHz · HYQ14FBA | 2020–2021 NA — mid-cycle refresh smart-key trims | HYQ14FBA | 89904-35040 | Texas H-8A (DST-AES, 128-bit; board 2110 AG) | 315 MHz | CR2032 | TOY51 |
| 315 MHz · HYQ14FBB / HYQ14FLA | 2021–2024 NA — late N280 production, all push-button-start trims | HYQ14FBB | 89904-35060 | Texas H-8A (DST-AES, 128-bit; HYQ14FBB board 0010 G / HYQ14FLA board 231451-3450) | 315 MHz | CR2032 | TOY51 |
| 315 MHz · HYQ12BBY | 2010–2019 NA — base / lower trims WITHOUT push-button start | HYQ12BBY | 89070-35170 | Texas 4D-G (4D72 DST80, 80-bit "G" chip) | 315 MHz | CR2016 | TR47 (Toyota TOY43 / Silca TOY43AT keyway) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Toyota cloud seed-code.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Toyota 4Runner G chip smart/remote key requires professional OBD tool — no self-programming procedure for this transponder family.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Toyota 4Runner uses Texas G chip (4D60 / 4D72, DST80 80-bit). G-chip OBD enrolment supported natively by Autel IM608 Pro II, Lonsdor K518 USA, OBDSTAR X300 DP Plus, and Xhorse VVDI Key Tool Plus. Newer 2024+ Autel US firmware may need IMKPA token ($5-15/session) for seed-code calc on some VINs. Standard 16-pin DLC path; no XP400 PRO bench, no APB112 simulator needed for OBD-only add-key.
- Smart proximity key: ensure existing key fob battery is functional before starting.
- Verify chip before booking: H-chip vs G-chip vs 4A AES generations share a fob shell but use different cryptosystems — confirm transponder ID from a working key with Lonsdor K518 reader before quoting.
- Tool kit context: most aftermarket flows use Autel IMKPA accessory or Lonsdor LKE Smart Key Emulator for cloud seed-code; Autel APB112 simulator and Autel G-Box bench EEPROM are NOT required for OBD-only add-key on this Toyota family. XP400 PRO only needed for damaged ECU EEPROM dump fallback.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Toyota 4Runner G chip smart key — professional tool mandatory.
- AKL for Toyota/Lexus G chip typically needs dealer-issued PIN or seed-code cloud calc — confirm OBD AKL path before quoting.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- AKL accessory needs: Autel IMKPA Toyota module for cloud seed-code calc, Lonsdor LKE Smart Key Emulator for K518 simulated-key AKL path. APB112 simulator and Autel G-Box bench EEPROM are NOT mandatory for standard AKL on this Toyota family — only XP400 PRO is needed if the ECU EEPROM is corrupted (rare).
Lockout
Door pick / decode: Lishi TOY43AT (CW).
103 verified sources · Last verified: 2026-08-10
