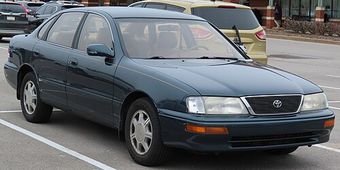

Toyota Avalon 1st (XX10) (1995–1999) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- TOY43
Key fobs & transponder keys (4 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

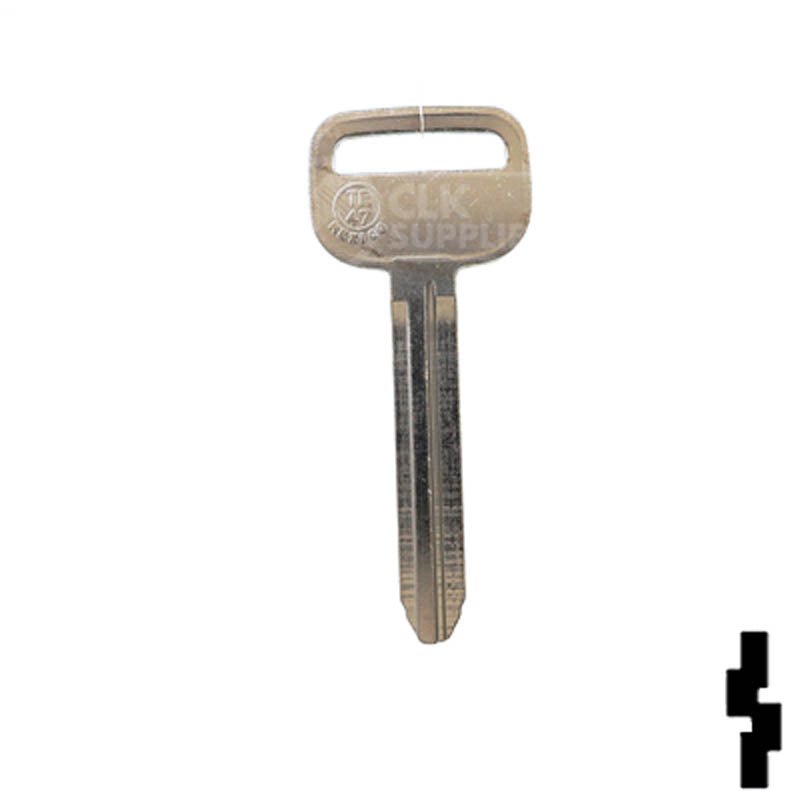

| TR47 · no chip · mechanical | 1995-1996 NA pre-immobilizer; also valet/sub key throughout 1995-1999 | n/a | 90999-00185 | none | n/a | n/a | TR47 (Silca TOY43, Ilco X217, Strattec 692063) |
| 89785-26020 · 4C | 1997-1999 NA late-XX10 immobilizer-equipped (per OEM PartsDeal earliest year) | n/a | 89785-26020 | Texas 4C (Crypto-1 transponder, glass) | n/a | n/a | TR47 (Silca TOY43, Ilco TOY43AT4, Strattec 692062) |
| HYQ1512Y · 89742-AC020 · 4-btn | 1997-1999 NA (post-HYQ1512Y grant 1997-08-11) | HYQ1512Y | 89742-AC020 | none | 314.35 MHz | CR2016 | n/a |
| BAB237131-022 · RS-3000 · dealer-installed | 1995-1999 NA — Toyota dealer port-installed accessory only (NOT factory) | BAB237131-022 | 08191-00922 | none | 303.875 MHz (key4) / 315 MHz (most retailers) | CR2025 | n/a |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN — mechanical only.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · No DTC scan needed.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Toyota Avalon (1995-1999) is pre-immobilizer — no transponder chip. The blade alone starts the vehicle. Locksmith cuts to OEM code from VIN or existing key. No chip-programming tools needed. Remote (if equipped) learned via in-vehicle key sequence per OEM service manual.
- Key/remote: ensure existing battery (if applicable) is functional before starting.
- Tool kit context: Lonsdor K518 USA + Autel IM608 Pro II + IMKPA can reprogram remote-function radio for pre-immobilizer cars if equipped. APB112 simulator, G-Box bench EEPROM, XP400 PRO, LKE Smart Key Emulator NOT applicable to mechanical-only chassis.
- Verify chip before booking (this chassis facelift): mechanical-only pre-immobilizer chassis. Some 1996-1999 facelift versions added transponder mid-cycle — confirm key has no chip with Lonsdor K518 reader before quoting.
- Toyota Avalon pre-immobilizer — no chip-level AKL. Mechanical AKL via lock cylinder rekey or new ignition cylinder if lost lock.
- Bring ALL replacement remotes (if equipped) before starting in-vehicle programming sequence.
- No professional tool needed for blade — only locksmith cut. Remote-only AKL via in-vehicle key dance.
Lockout
Door pick / decode: Lishi TOY43 (CW).
73 verified sources · Last verified: 2026-08-09
