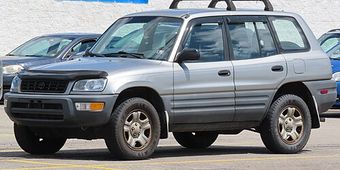

Toyota RAV4 1st (XA10) (1994–2000) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- TR47
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

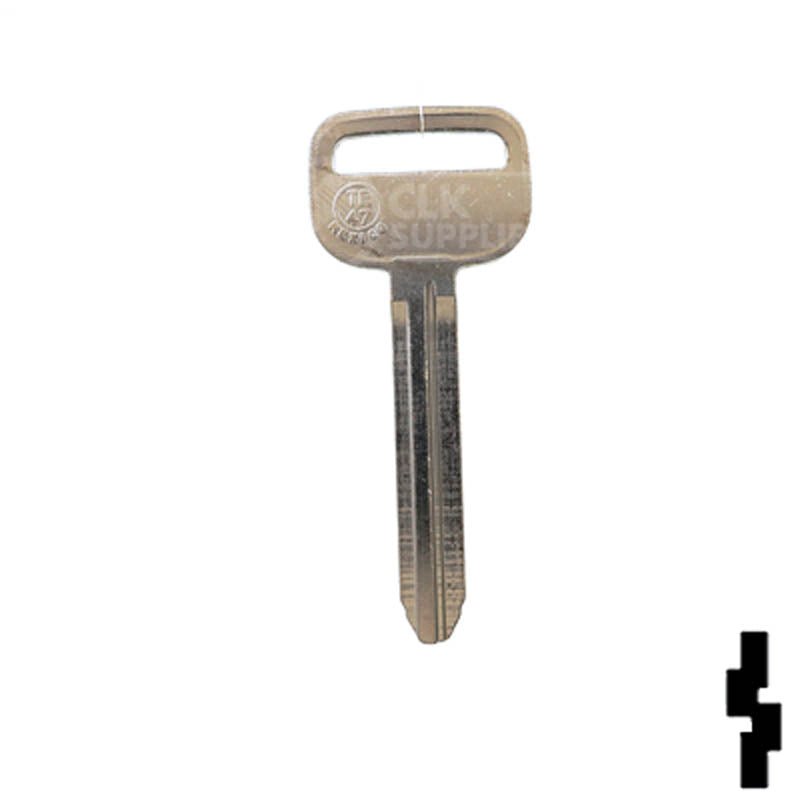

| n/a · 90999-00185 | 1994-2000 global mechanical — JDM/EU debut 1994, NA debut Jan 1996; NA chip-less for the entire run; EU/UK chip-less until the Oct-1998 immobiliser mandate (post-1998 EU = transponder vi 2) | n/a | 90999-00185 | none | n/a | n/a | TR47 / TOY43 |
| 303.875 MHz · BAB237131-022 | 1998-2000 NA — dealer-installed option only (NOT factory-equipped) | BAB237131-022 | 08191-00871 | none | 303.875 MHz | CR2025 | n/a |
| 4C transponder · 89785-26020 | 1998-2000 EU/UK MY — factory engine immobiliser (mandated Germany 1/1998, UK 10/1998; Toyota added the immobiliser to the ECU Oct 1998) | n/a | 89785-26020 | Texas 4C | n/a | n/a | TOY43 / TR47 (Ilco TOY43AT4, JMA TP07/TOYO-15, STRATTEC 692062) |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN — mechanical only.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · No DTC scan needed.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Toyota RAV4 (1994-2000) is pre-immobilizer — no transponder chip. The blade alone starts the vehicle. Locksmith cuts to OEM code from VIN or existing key. No chip-programming tools needed. Remote (if equipped) learned via in-vehicle key sequence per OEM service manual.
- Key/remote: ensure existing battery (if applicable) is functional before starting.
- Tool kit context: Lonsdor K518 USA + Autel IM608 Pro II + IMKPA can reprogram remote-function radio for pre-immobilizer cars if equipped. APB112 simulator, G-Box bench EEPROM, XP400 PRO, LKE Smart Key Emulator NOT applicable to mechanical-only chassis.
- Verify chip before booking (this chassis facelift): mechanical-only pre-immobilizer chassis. Some 1996-1999 facelift versions added transponder mid-cycle — confirm key has no chip with Lonsdor K518 reader before quoting.
- Toyota RAV4 pre-immobilizer — no chip-level AKL. Mechanical AKL via lock cylinder rekey or new ignition cylinder if lost lock.
- Bring ALL replacement remotes (if equipped) before starting in-vehicle programming sequence.
- No professional tool needed for blade — only locksmith cut. Remote-only AKL via in-vehicle key dance.
Lockout
Door pick / decode: Lishi TR47 (CW).
34 verified sources · Last verified: 2026-08-10
