Toyota Sequoia 2nd (XK60) (2008–2022) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- TOY43AT
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

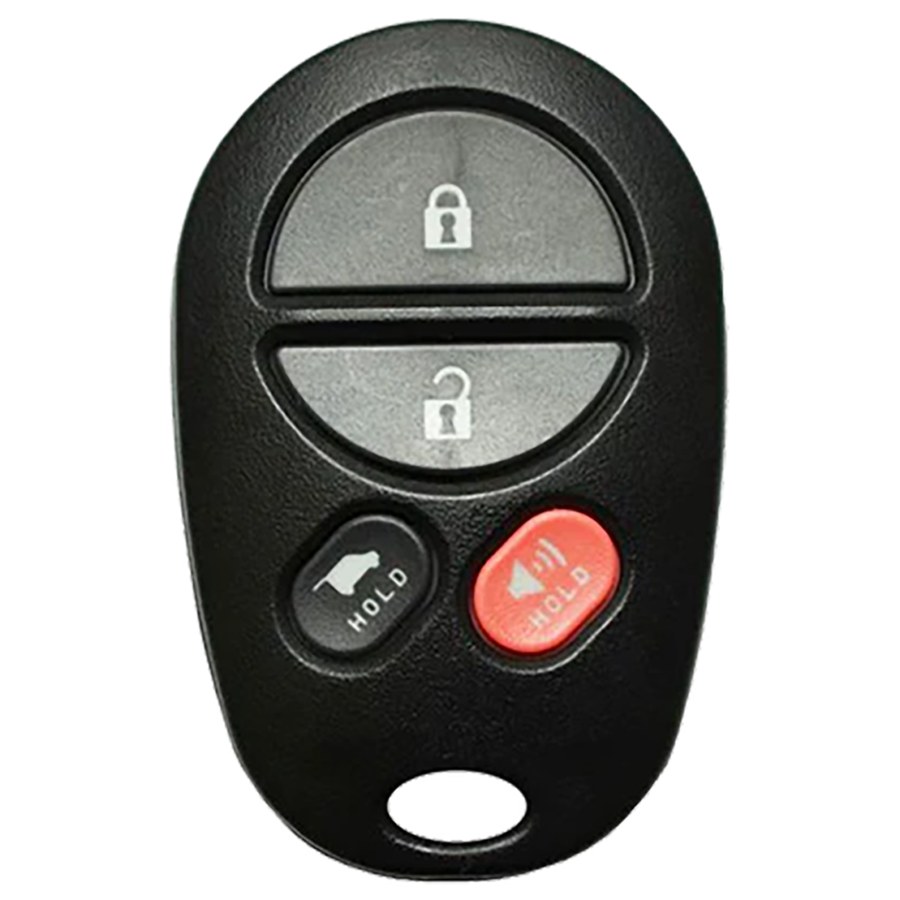

| 315 MHz · GQ43VT20T | 2008–2018 NA — all trims, no push-button start on any XK60 trim through 2018 | GQ43VT20T | 89742-0C041 | none | 315 MHz | CR2032 | n/a |
| transponder · 89785-0D170 | 2008–2018 NA — all trims, cut ignition key used alongside remote fob | n/a | 89785-0D170 | Toyota H-chip (Texas 4D74, 128-bit) — final XK60 generation | n/a | n/a | TR47 (TOY44H) |
| 315 MHz · HYQ14FBA | 2019–2022 NA — final XK60 model years with factory smart key system | HYQ14FBA | 89904-0E121 | Texas H 8A (128-bit, integrated in proximity fob) | 315 MHz | CR2032 | TOY51 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Toyota seed-code H-chip.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Toyota Sequoia XK60 2008-2022) spans three chip generations — 4D67 (2008-2010), G-chip 4D72G (2011-2017), H-chip 128-bit AES (2018+). Verify chip before ordering blanks. Pre-2018: Tech Stream or K518 + OBP cable on-board cycle. 2018+: H-chip requires Toyota seed-code cloud (Autel, Xhorse VVDI Key Tool Plus + Toyota H token).
- 2008-2018 transponder key chip progression: 2008-2011 = G/D-chip (4D67); 2010-2015 = G-chip (4D72); 2015-2018 = H-chip (4D74, 128-bit). Verify chip stamp on existing key head before programming.
- Smart proximity key (2019-2022): professional IMMO tool required — no self-programming method.
- Post-2024 Autel US firmware: Toyota add-key may be affected by TMNA restrictions — verify on current firmware.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Toyota H chip smart key — professional tool mandatory.
- AKL for Toyota H chip can require dealer-issued PIN or EEPROM dump on some models — confirm OBD AKL path before quoting.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- Post-2024 Autel US firmware: Toyota AKL reportedly restricted per TMNA — verify AKL capability before booking.
Lockout
Door pick / decode: Lishi TOY43AT (CW).
