Toyota Yaris 3rd (XP150) (2012–2020) — Key Programming Reference
- Difficulty
- easy
- Immobilizer
- 4D-G/4D-H
- Lishi / lockout
- TOY47
- Platform
- Toyota B platform (xp150)

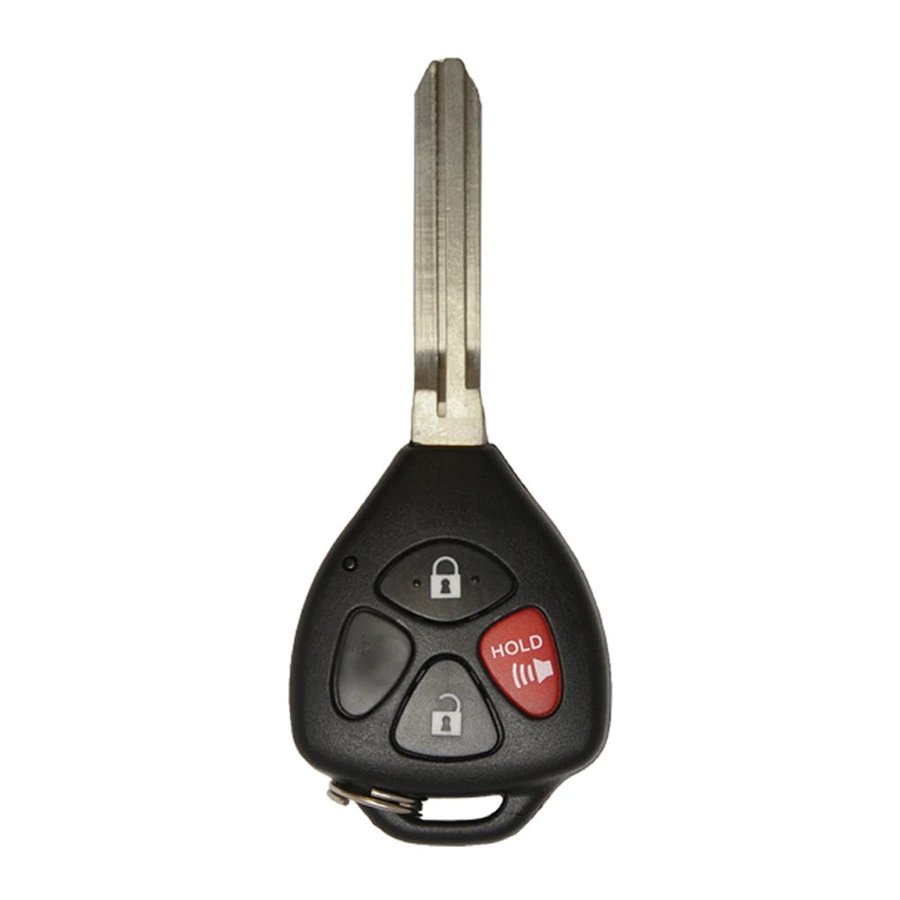

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 314.35 MHz · HYQ12BBY | 2012–2018 NA — all hatchback/liftback trims (XP130 platform) | HYQ12BBY | 89070-35170 | Texas G (4D72) 2012–2015 / Texas H (4D) 2015–2018 | 315 MHz | CR2016 | TR47 (Silca TOY43, integrated in key head) |
| 315 MHz · WAZSKE13D01 | 2017–2018 Yaris iA / 2019–2020 Yaris NA (Mazda2 DJ platform) | WAZSKE13D01 | 89904-WB001 | NXP HITAG-PRO ID49 (128-bit) | 315 MHz | CR2025 | MAZ24R |
| 433.92 MHz · B71TA / 89070-0D580 | 2012–2020 — EU/GCC Yaris hatch + Vios/Yaris-sedan (XP150) emerging markets | n/a | 89070-0D580 | Texas G (4D72 / ID67-G, 80-bit DST80) | 433.92 MHz (ETSI) | CR2016 | TOY43 (Silca) — bladed/key-head |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Toyota cloud seed-code.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Toyota Yaris G chip smart/remote key requires professional OBD tool — no self-programming procedure.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Toyota Yaris uses Texas G chip (4D60 / 4D72, DST80 80-bit). G-chip OBD enrolment supported natively by Autel IM608 Pro II, Lonsdor K518 USA, OBDSTAR X300 DP Plus, and Xhorse VVDI Key Tool Plus. Newer 2024+ Autel US firmware may need IMKPA token ($5-15/session) for seed-code calc on some VINs. Standard 16-pin DLC path; no XP400 PRO bench, no APB112 simulator needed for OBD-only add-key.
- Smart proximity key: ensure existing key fob battery is functional before starting.
- Verify chip before booking: H-chip vs G-chip vs 4A AES generations share a fob shell but use different cryptosystems — confirm transponder ID from a working key with Lonsdor K518 reader before quoting.
- Tool kit context: most aftermarket flows use Autel IMKPA accessory or Lonsdor LKE Smart Key Emulator for cloud seed-code; Autel APB112 simulator and Autel G-Box bench EEPROM are NOT required for OBD-only add-key on this Toyota family. XP400 PRO only needed for damaged ECU EEPROM dump fallback.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Toyota Yaris G chip smart key — professional tool mandatory.
- AKL for Toyota/Lexus G chip typically needs dealer-issued PIN or seed-code cloud calc — confirm OBD AKL path before quoting.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- AKL accessory needs: Autel IMKPA Toyota module for cloud seed-code calc, Lonsdor LKE Smart Key Emulator for K518 simulated-key AKL path. APB112 simulator and Autel G-Box bench EEPROM are NOT mandatory for standard AKL on this Toyota family — only XP400 PRO is needed if the ECU EEPROM is corrupted (rare).
Lockout
Door pick / decode: Lishi TOY47 (CW).
