Audi e-tron GT 1st (F8) (2021–2025) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HU66
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

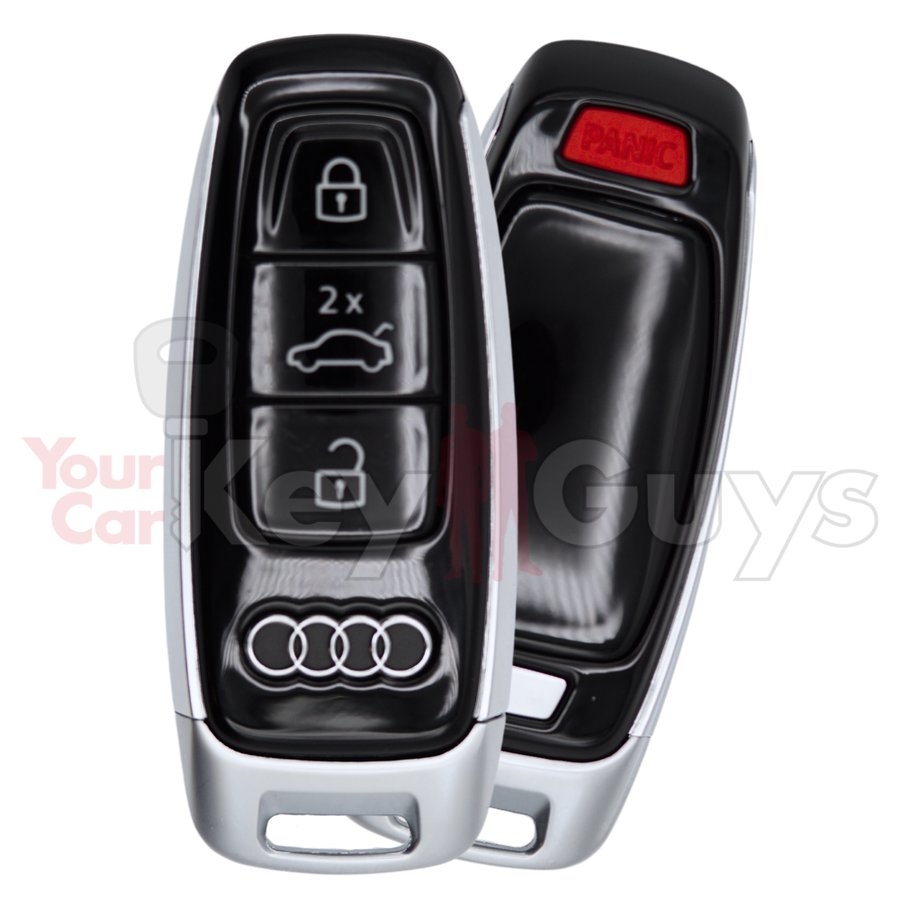

| 433 MHz · IYZ-AK2 | 2021–2025 all markets | IYZ-AK2 | 4N0959754AQ | Megamos AES (Hitag Extended, NXP) | 433.92 MHz | CR2032 | HU66 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: See risks for PIN source.
- Online / server access: required — None.
- On-board (no tool) sequence: not available — Audi B9 / MLB Evo (A4/A5/A6/A7/A8/Q5/Q7/Q8 2017+) is newer MQB-derivative with stricter security. Add Key/AKL requires Audi ONLINE security access (factory scan tool flow). Xhorse VVDI Key Tool Plus + ACDP module pair or Autel IM608 II with Audi MLB Evo package may work for some 2017-2020 builds. Newest builds (2021+) often require dealer with Audi VIN-bound security ticket. Confirm coverage with tool vendor before quoting.
- On site: engine off.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis spans the Audi MLB Evo era (2021-2025) which uses Porsche-shared J1 EV platform with Audi-style IMMO + Audi ONLINE security. Aftermarket Add Key/AKL frequently requires dealer ONLINE security ticket via Audi (Erwin) portal or 3rd-party VIN-bound ticket. XP400 Pro + APB112 BCM read may work for early builds — confirm with vendor before quoting.
- Battery support recommended for VAG MQB session (cluster data dump takes time).
- Audi B9 / MLB Evo (2017+): can require dealer-only ONLINE security ticket for newest builds. Verify Autel/Xhorse coverage for the exact VIN before scheduling.
- e-tron GT uses J1 platform (Porsche Taycan sibling). Procedure may need Porsche-side knowledge in addition to Audi. confirm tool coverage.
- AKL erases all existing key registrations — bring minimum 2 new key blanks (XSMA1EN or compatible MQB-prepared blank).
- e-tron GT EV: 12V battery support critical. HV in standby.
Lockout
Door pick / decode: Lishi HU66 (CW).
21 verified sources · Last verified: 2026-08-10
