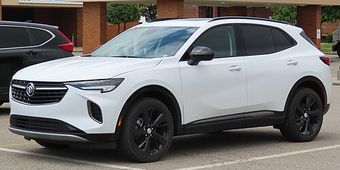

Buick Envision 2nd generation (2021–2025) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HU100

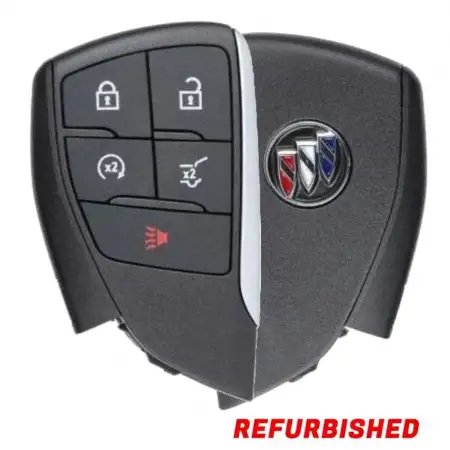

Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 433.92 MHz · YGOG21TB2 | 2021–2025 NA | YGOG21TB2 | 13537966 | NXP HITAG-Pro ID49 (AES-128, NCF29A1M) | 433.92 MHz | CR2450 | HU100 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF VSP SAC (24-digit).
- Online / server access: required — Tool cloud login req'd.
- On-board (no tool) sequence: not available — 2021-2025 Buick Envision has no onboard programming. CarandTruckRemotes.com 2023 Envision instructions confirm: "vehicle is not on board programmable and requires a qualified professional to program smart key remote fobs." The pre-2017 GM two-key cupholder relearn does NOT work on Global B.
- On site: engine off · Maintain 13.5V+ · Clear IMMO + BCM DTCs.
- Bring: Photo ID + registration. VIN cross-check. NASTF VSP log retained 7 years.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Envision 2nd gen, E2 platform, 2021-2025) uses GM Global B / CAN FD architecture. Requires CAN FD-capable tool (Autel CAN FD adapter, OBDSTAR CAN FD adapter, or Lonsdor K518 Pro built-in CAN FD). Standard pre-2020 GM cables WILL NOT communicate.
- NASTF VSP 24-digit Security Access Code MANDATORY for all aftermarket programmers on this variant. GM banned 3rd-party direct-server PIN retrieval in 2021. SAC from NASTF SDRM portal or 3rd-party calc service per VIN. IM608 Pro II XP400 PRO bench module bundled with the kit is NOT used on this chassis — OBD-only.
- FCC differs from 1st gen Envision (2016-2020 used HYQ4AA). 2nd gen 2021-2025 = YG0G21TB2 only. Verify chip before quoting — wrong fob will not pair. Verify trim — Preferred / Essence / Avenir use same procedure but customer pricing tiers differ.
- AKL on this chassis erases all existing keys. Bring minimum 2 new blanks. Verify trim before quoting — Preferred / Essence / Avenir same workflow but customer expectations differ.
- NASTF VSP 24-digit SAC mandatory on Autel / AutoProPad / Lonsdor / Xhorse on this variant. OBDSTAR X300 DP Plus attempts bypass via 12-min door cycle — success not guaranteed.
- 12-min door-cycle timer must run uninterrupted.
Lockout
Door pick / decode: Lishi HU100 (CCW).
18 verified sources · Last verified: 2026-08-05
