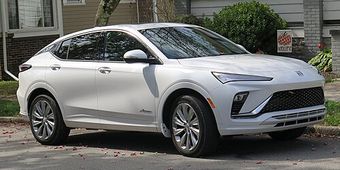

Buick Envista 1st generation (2024–2025) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- HU100
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

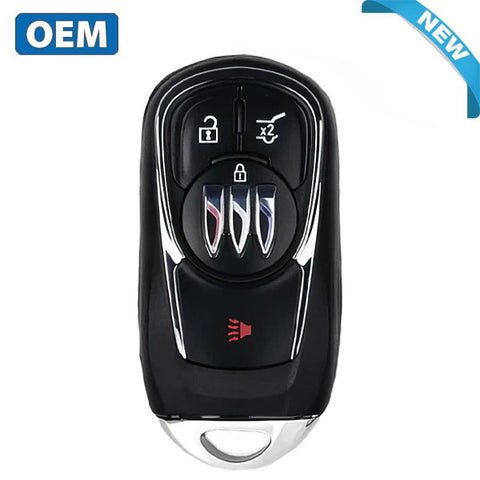

| 433.92 MHz · HYQ4ES | 2024-2025 all trims — US + Canada verified; the same PN 13547677 also serves the Encore GX, so confirm the nameplate. Asia-Pacific build/market fitment not separately evidenced. | HYQ4ES | 13547677 | Philips/NXP ID46 (GM EXT, Hitag-2) | 433.92 MHz | CR2032 | HU100 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF VSP SAC (24-digit).
- Online / server access: required — Tool cloud login req'd.
- On-board (no tool) sequence: not available — 2024-2025 Envista has no DIY onboard programming. Dealer-side relearn requires two existing recognized keys and GM SPS2 / MDI 2. Aftermarket Add Key requires CAN FD-capable tool + NASTF SAC.
- On site: engine off · Maintain 13.5V+ · Clear IMMO + BCM DTCs.
- Bring: Photo ID + registration. VIN cross-check. NASTF VSP log retained 7 years.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Envista 1st gen, GEM platform, 2024-2025, China-built entry crossover) uses GM Global B / CAN FD architecture with HYQ4ES smart key. Shares HYQ4ES FCC with Encore GX 2021-2025 but uses Envista-specific PN 13547677 — confirm model when ordering blanks. Requires CAN FD-capable tool (Autel CAN FD adapter, OBDSTAR CAN FD adapter, or Lonsdor K518 Pro built-in CAN FD).
- NASTF VSP 24-digit Security Access Code MANDATORY for all aftermarket programmers on this variant. GM banned 3rd-party direct-server PIN retrieval in 2021. SAC from NASTF SDRM portal or 3rd-party PIN calculator service per VIN. IM608 Pro II XP400 PRO bench module is NOT used on this chassis — OBD-only path.
- Envista is the newest GM Global B entry — launched 2024 MY. Tool coverage filtered in by Autel + AutoProPad in 2024 update notes (treated as Buick Global B variant alongside Envision). Verify chip before — Encore GX siblings use the same HYQ4ES but ordering wrong PN will not pair. Verify trim — Sport Touring / Preferred / Avenir share procedure but customer pricing differs.
- AKL on this chassis erases all existing keys. Bring minimum 2 new blanks. Verify trim — Sport Touring / Preferred / Avenir same workflow.
- NASTF VSP 24-digit SAC mandatory on this variant. OBDSTAR attempts bypass via 12-min door cycle — success not guaranteed; quote with PIN-required pricing.
- 12-min door-cycle timer uninterrupted.
Lockout
Door pick / decode: Lishi HU100 (CCW).
20 verified sources · Last verified: 2026-08-10
