Buick LeSabre 8th generation (2000–2005) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- B111

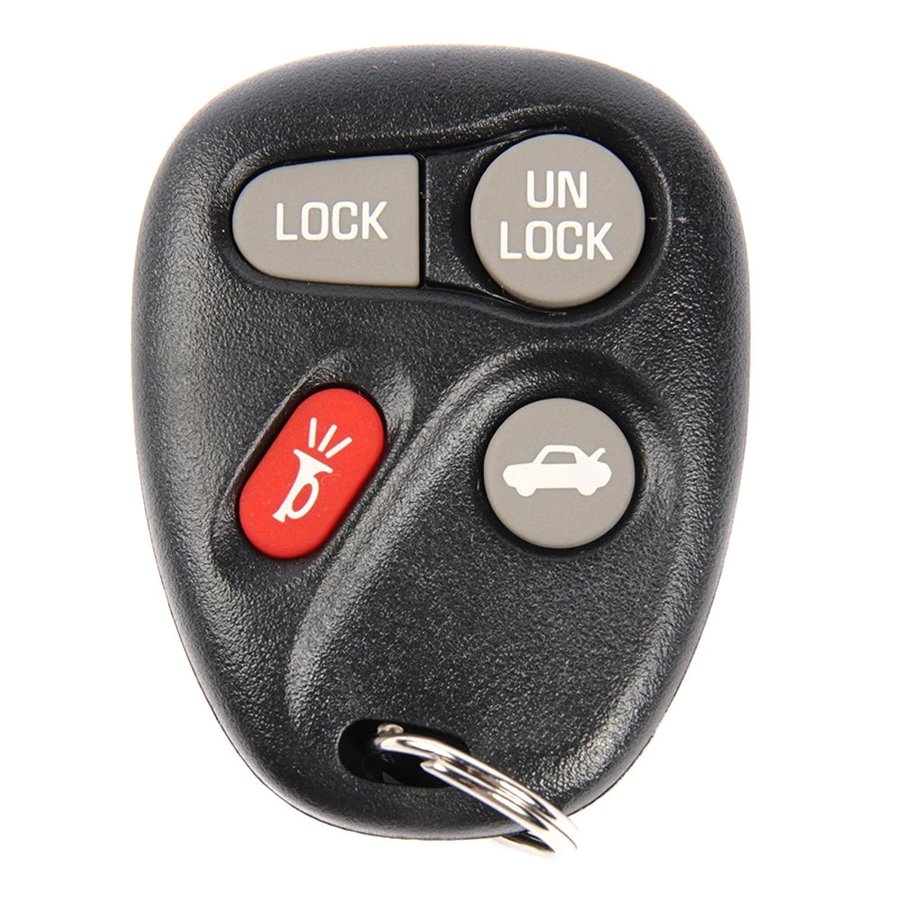

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · KOBUT1BT | 2000 NA | KOBUT1BT | 25665574 | none | 315 MHz | CR2032 | n/a |
| 315 MHz · KOBLEAR1XT | 2001–2005 NA | KOBLEAR1XT | 25695954 | none | 315 MHz | CR2032 | n/a |
| PK3 transponder · B99-GPT | 2000–2005 NA | n/a | 15821269 | Megamos ID13 (GM PK3) | n/a | n/a | B99-PT |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN - Passlock relearn.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Buick LeSabre 8th gen, 2000-2005) spans the GM Passlock era — uses resistor pellet (not transponder chip). LeSabre 8 is final generation on GM G-body platform shared with Pontiac Bonneville 9 and Oldsmobile Aurora 2. On-board 30-minute relearn with stable 12V+ is standard.
- AKL via on-board cycle works — Passlock has no "all keys lost" lockout. No special tool needed if 30+ min available.
Lockout
Door pick / decode: Lishi B111 (CW).
40 verified sources · Last verified: 2026-08-10
