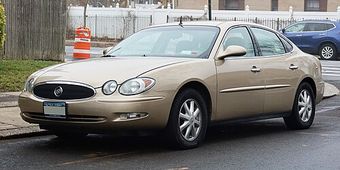

Buick LaCrosse 1st generation (2005–2009) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- B111

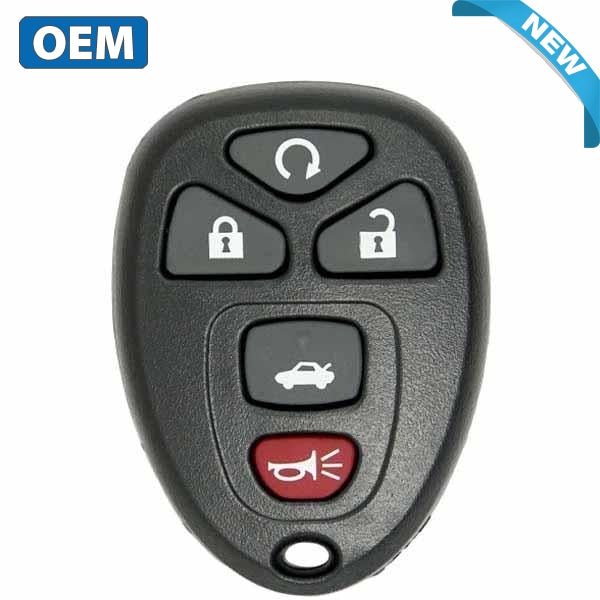

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · KOBGT04A | 2005-2009 NA (US LaCrosse + Canada Allure) | KOBGT04A | 22733524 | none | 315 MHz | CR2032 | n/a |
| transponder · B111-PT / 5903089 | 2005-2009 NA (US LaCrosse + Canada Allure) | n/a | 15821269 | Megamos ID13 (GM PK3) | n/a | n/a | PT04-PT / B107 |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN - Passlock relearn.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Buick LaCrosse 1st gen, 2005-2009) spans the GM Passlock era — uses resistor pellet (not transponder chip). LaCrosse 1 uses GM W-body platform shared with Pontiac Grand Prix. On-board 30-minute relearn with stable 12V+ is the standard path.
- AKL via on-board cycle works — Passlock has no "all keys lost" lockout. No special tool needed if 30+ min available.
Lockout
Door pick / decode: Lishi B111 (CW).
